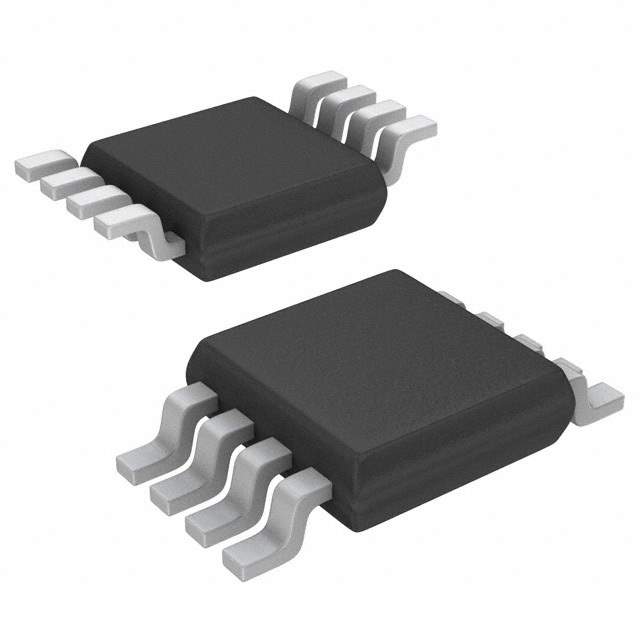

The ISL3159EFUZ is a ±15kV ESD protected, Profibus transceiver that meets or exceeds the requirements of the ANSI standard TIA/EIA-485 (RS-485) and ISO 11898-2. It’s designed for robust communication in industrial networks and is manufactured by Renesas Electronics.

Applications

• Profibus networks
• Industrial automation
• Process control
• Building automation
• Motor control

Features

• Profibus transceiver
• ±15kV ESD protection on RS-485 I/O pins
• Data rates up to 12Mbps
• Single 3.0V to 5.5V supply
• Low power consumption
• Short-circuit protection
• Thermal shutdown protection
• Fail-safe receiver inputs
• Half-duplex operation

Benefits

• Robust Communication: Designed for reliable data transmission in harsh industrial environments.
• High ESD Protection: Protects the transceiver from damage due to electrostatic discharge.
• Wide Supply Voltage Range: Operates from a single 3.0V to 5.5V supply, offering flexibility in system design.
• Low Power Consumption: Minimizes power requirements, suitable for power-sensitive applications.
• Comprehensive Protection: Short-circuit and thermal shutdown protection prevent damage to the transceiver in fault conditions.

Additional Details

The ISL3159EFUZ includes a robust driver output capable of driving heavily loaded cables. The fail-safe receiver inputs guarantee a known output state when the bus is idle or shorted. The device operates over a wide industrial temperature range. The half-duplex operation allows for data transmission in both directions, but only one direction at a time. The high ESD protection ensures reliable operation in environments with high levels of static electricity.
