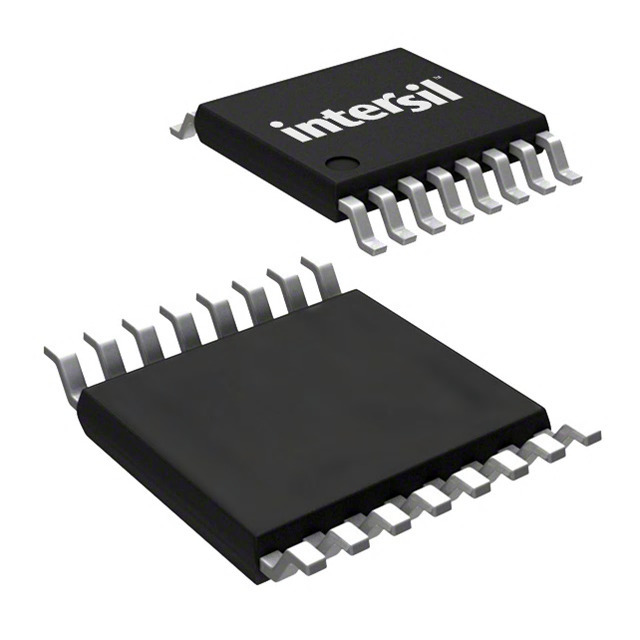

The HIN232CB is a RS-232 transceiver from Renesas Electronics America. It is designed to interface a data terminal equipment (DTE) or data communication equipment (DCE) with the serial port of a host system. The device is a single-chip solution that includes the necessary drivers and receivers to convert TTL/CMOS logic levels to RS-232 voltage levels.

Applications:

• Computers and Peripherals: For serial communication between computers and peripherals like printers, mice, and modems.
• Industrial Control Systems: Used in PLCs, HMIs, and other industrial devices for communication over RS-232.
• Diagnostic Equipment: In medical and automotive diagnostic tools for serial data transfer.
• Embedded Systems: Suitable for microcontroller-based systems requiring RS-232 communication.
• Data Acquisition Systems: Used to interface with sensors and other data acquisition devices.

Features:

• Meets EIA/TIA-232 Standards: Ensures compatibility with a wide range of RS-232 devices.
• Single 5V Supply Operation: Simplifies system design by requiring only a single power supply.
• Two Transmitters and Two Receivers: Provides two independent channels for simultaneous communication.
• High Data Rate: Supports data rates up to 120kbps or higher, enabling fast communication.
• Internal Charge Pump: Generates the necessary RS-232 voltage levels from the 5V supply.
• Low Power Consumption: Minimizes power consumption in battery-powered applications.

Benefits:

• Simplified System Design: Single supply operation and integrated charge pump simplify system design.
• Enhanced Communication Performance: High data rates enable fast and efficient communication.
• Wide Compatibility: Meets industry standards, ensuring compatibility with various RS-232 devices.
• Reduced Power Consumption: Low power consumption extends battery life in portable devices.
• Robust Performance: Designed for reliable operation in harsh environments.

Technical Specifications: The HIN232CB operates from a single 5V power supply and includes an internal charge pump to generate the RS-232 voltage levels. It features two transmitters and two receivers, allowing for simultaneous data transmission and reception. The device is available in various package options, including DIP and SOIC. Detailed electrical characteristics and application notes are available in the product datasheet.
