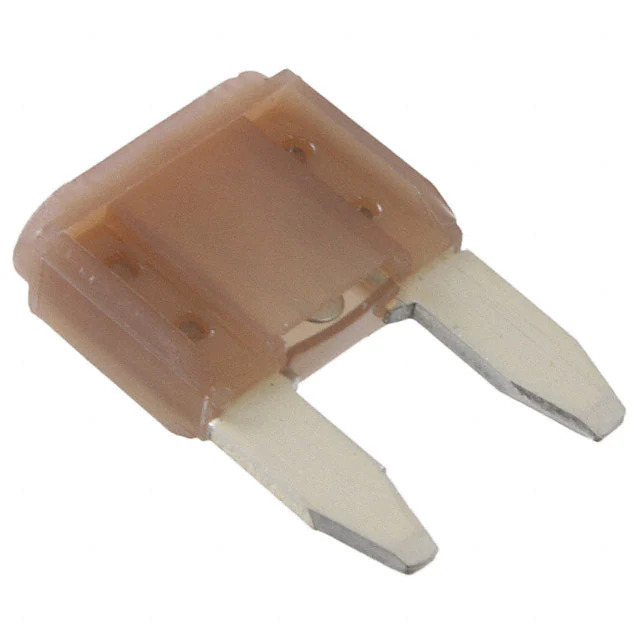

0297005.U Littelfuse Inc.
Same model may have multiple batches, images only for reference.

0297005.U

Part No 0297005.U
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE AUTOMOTIVE 5A 32VDC BLADE / 5 A AC 32 V DC Fuse Automotive Requires Holder Blade, Miniature
Datasheet
0297005.U Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series MINI® 297
Package Bulk
Product Status Active
Mounting Type Requires Holder
Fuse Type Automotive
Current Rating (Amps) 5 A
Voltage Rating - DC 32 V
Response Time Fast Blow
Package / Case Blade, Miniature
Breaking Capacity @ Rated Voltage 1kA
Melting I²t 25
Approval Agency SAE, UL
Temperature Range - Operating -40°C ~ 125°C
Color Tan
Size / Dimension 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm)
DC Cold Resistance 0.01775 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1361560-0297005.U
Ultra Librarian 3D Model Ultra Librarian 0297005.U CAD Model

Description

The 0297005.U is a blade-type miniature fuse from the MINI® 297 series manufactured by Littelfuse Inc. Bold text is 0297005.U.

  • Series: MINI® 297
  • Operating Temperature: -40°C to 125°C
  • Current Rating: 5A
  • Voltage Rating: 32V DC
  • Package: Blade, Miniature
  • Mounting: Holder Required
  • Response Time: Fast blow
  • Breaking Capacity: 1kA
  • Approvals: SAE, UL
  • Color: Tan
