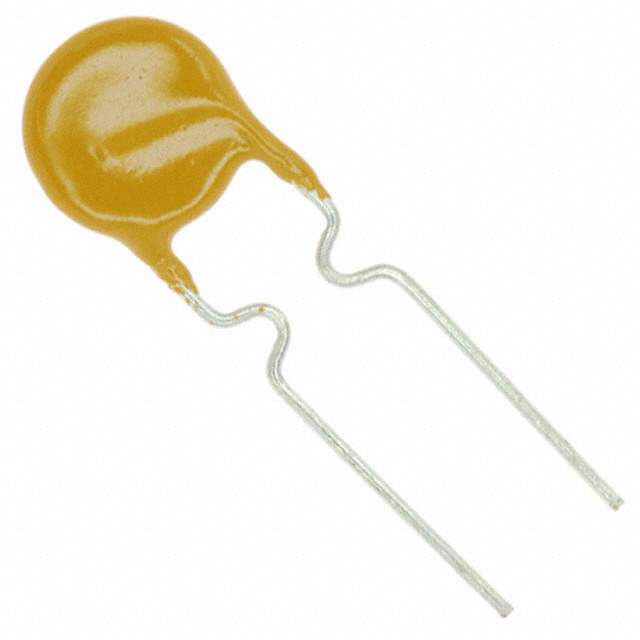

MF-R040-2 Real Image
Same model may have multiple batches, images only for reference.

MF-R040-2

Part No MF-R040-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESETTABLE
Datasheet
MF-R040-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 60V
Current - Max 40A
Current - Hold (Ih) (Max) 400mA
Current - Trip (It) 800mA
Time to Trip 3.8s
Resistance - Initial (Ri) (Min) 520 mOhm
Resistance - Post Trip (R1) (Max) 1.29 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 0.291" Dia x 0.122" W (7.40mm x 3.10mm)
Height - Seated (Max) 0.539" (13.70mm)
Lead Spacing 0.201" (5.10mm)
Approvals cURus, TUV
Win Source Part Number 003412-MF-R040-2
Ultra Librarian 3D Model Ultra Librarian MF-R040-2 CAD Model

Description

The Bourns Inc. 003412-MF-R040-2 is a polymeric type circuit protection component with a voltage rating of 60V and a maximum current of 40A.

  • Approvals: cURus and TUV
  • Height: 0.539" when seated
  • Mounting: Through hole
  • Lead Spacing: 0.201"
  • Category: Circuit protection
  • Status: Active
  • Operational Temperature Range: -40°C to 85°C
  • Resistance - Initial (Ri) (Min): 520 mOhm
  • Resistance - Post Trip (R1) (Max): 1.29 Ohm
