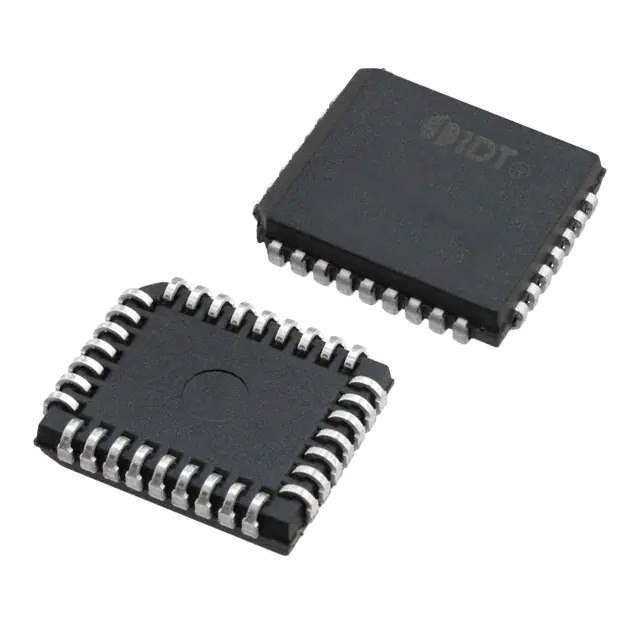

72V04L15JG Real Image
Same model may have multiple batches, images only for reference.

72V04L15JG

Part No 72V04L15JG
Manufacturer Renesas Electronics America
Catalog Logic - FIFOs Memory
Description IC FIFO ASYNC 4KX9 15NS 32PLCC / Asynchronous FIFO 36K (4K x 9) Uni-Directional 40MHz 15ns 32-PLCC (14x11.46)
Datasheet
72V04L15JG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Logic - FIFOs Memory
Mfr Renesas Electronics America
Series 72V
Package Tube
Product Status Active
Programmable Not Verified
Memory Size 36K (4K x 9)
Function Asynchronous
Data Rate 40MHz
Access Time 15ns
Voltage - Supply 3 V ~ 3.6 V
Current - Supply (Max) 60mA
Bus Directional Uni-Directional
Expansion Type Depth, Width
Programmable Flags Support No
Retransmit Capability Yes
FWFT Support No
Temperature Range - Operating 0°C ~ 70°C
Mounting Type Surface Mount
Package / Case 32-LCC (J-Lead)
Supplier Device Package 32-PLCC (14x11.46)
Base Product Number 72V04
Standard Package 32 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0071
Win Source Part Number 857125-72V04L15JG
Ultra Librarian 3D Model Ultra Librarian 72V04L15JG CAD Model

Description

The 857125-72V04L15JG is a FIFOs memory integrated circuit (IC) belonging to the 72V series, manufactured by Renesas Electronics America.

  • Series: 72V
  • Package: Tube
  • Standard Package: 32 pieces
  • Data Rate: 40MHz
  • Function: Asynchronously
  • Memory Size: 36K (4K x 9)
  • Access Time: 15ns
  • Features: Programmable retransmit capability
  • Maximum Supply Current: 60mA
  • Bus Direction: Unidirectional
  • Expansion Type: Depth and width
  • Programmable Flags Support: Not Verified
  • FWFT Support: No
  • Voltage Supply Range: 3V to 3.6V
  • Mounting Type: Surface mountable
  • Package Type: 32-LCC (J-Lead)
  • Supplier Device Package: 32-PLCC (14x11.46)
  • Temperature Range: 0°C to 70°C
  • ECCN: EAR99
  • MSL Level: 3
  • REACH Status: Unaffected
  • HTSUS Code: 8542.32.0071
