Same model may have multiple batches, images only for reference.

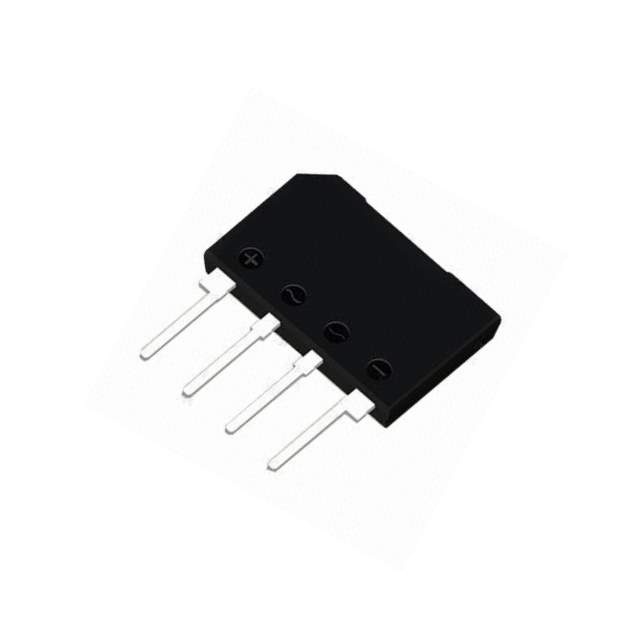

RS603M Real Image
Same model may have multiple batches, images only for reference.

RS603M

Part No RS603M
Manufacturer Rectron USA
Catalog Bridge Rectifiers
Description BRIDGE RECT GLASS 200V 6A RS-6M / Bridge Rectifier Single Phase Standard 200 V Through Hole RS-6M
Datasheet
RS603M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Manufacturer Rectron USA
Packaging Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 200 V
Current - Average Rectified (Io) 6 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 6 A
Current - Reverse Leakage @ Vr 5 µA @ 200 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Through Hole
Case / Package 4-SIP, RS-6M
Supplier Device Package RS-6M
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 2516-RS603M
Standard Package 1,200
Win Source Part Number 1324277-RS603M
Ultra Librarian 3D Model Ultra Librarian RS603M CAD Model

Description

The RS603M is a single-phase diode bridge rectifier manufactured by Rectron USA.

  • Package: Tube
  • Standard Package: 1,200
  • Forward Voltage: 1.1V @ 6A
  • Peak Reverse Voltage: 200V
  • Reverse Leakage Current: 5μA @ 200V
  • Mounting: Through-Hole
  • Temperature Range: -55°C to 150°C
  • ROHS3 Compliant: Yes
