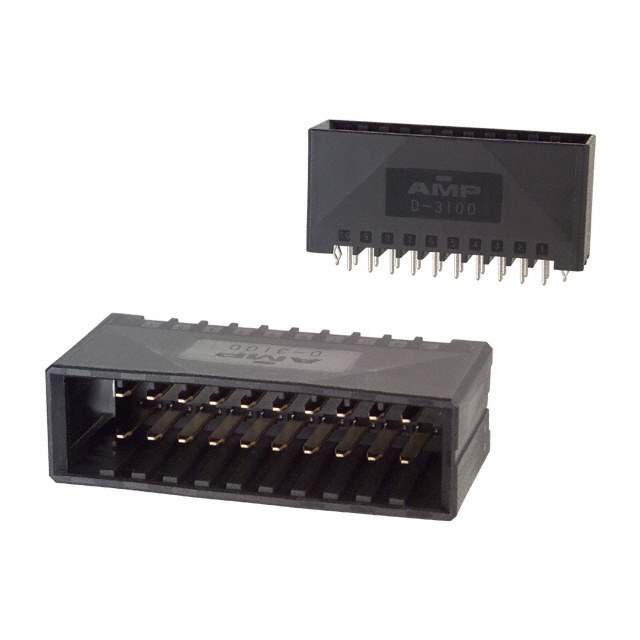

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Dynamic D-3100
Package Bulk
Connector Type Header
Contact Type Tab
Pitch - Mating 0.150" (3.81mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.200" (5.08mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Post 0.150" (3.81mm)
Insulation Height 0.850" (21.59mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Polyester, Glass Filled
Features Board Lock
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 250V
Applications General Purpose, Industrial
Base Product Number 178328
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names -178328-2-CSI,-178328-2-LSI,A29524,A29524-NDR,2266-178328-2,-178328-2-SI
Standard Package 10
Win Source Part Number 1034986-178328-2
Ultra Librarian 3D Model Ultra Librarian 178328-2 CAD Model

Description

The TE Connectivity AMP Connectors 1034986-178328-2 is a high-quality rectangular connector with male pins.

  • Series: Dynamic D-3100
  • Positions: 20
  • Features: Board Lock
  • Connector Type: Header
  • Contact Type: Tab
  • Positions Loaded: All
  • Rows: 2
  • Termination: Solder
  • Fastening Type: Detent Lock
  • Package: Bulk
  • Standard Package: 10
  • Contact Material: Copper Alloy
  • Voltage Rating: 250V
  • Shrouding: Shrouded - 4 Walls
  • Row Spacing: 0.200 inches
  • MSL Level: 1 (Unlimited)
  • REACH: Undefined
  • HTSUS: 8536.69.4040
  • Alternative Parts: 178308-2, 178328-5, 178327-2, 43045-2014, 43045-2002, and 39-30-1201178328-2
