STMicroelectronics M24C04-WMN6TP EEPROM

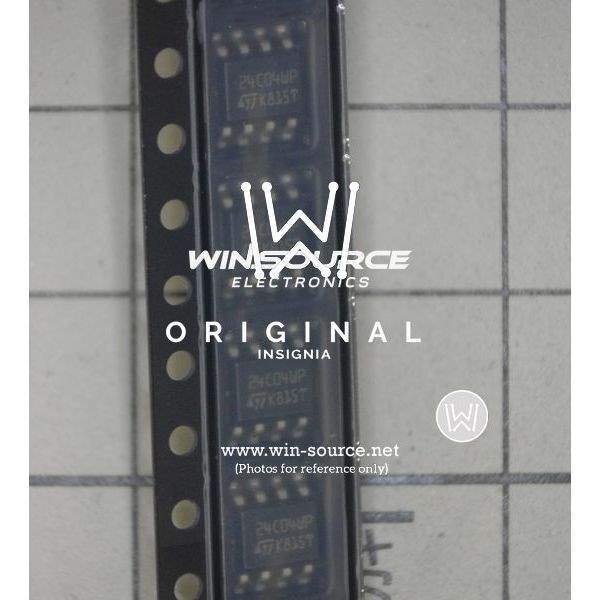

The M24C04-WMN6TP is a 4-Kbit serial EEPROM (Electrically Erasable Programmable Read-Only Memory) from STMicroelectronics designed for flexible, non-volatile storage solutions in a wide array of electronic applications. This EEPROM comes in an 8-pin SO N (Narrow) package, making it suitable for space-constrained designs.

With its I²C-compatible wire protocol, the M24C04-WMN6TP allows for easy integration into existing designs, providing a simple 2-wire serial interface for communication. This makes it particularly useful for applications requiring data storage that must be preserved between power cycles, such as device configurations, calibration data, or user preferences.

The M24C04-WMN6TP operates across a voltage range of 2.5V to 5.5V, enabling its use in systems with varying power supplies. This flexibility, coupled with its low power consumption, makes it an ideal choice for battery-operated and portable devices. Additionally, the EEPROM supports a write cycle time of 5 ms, ensuring quick data storage and efficient performance in write-intensive applications.

One of the key features of this EEPROM is its byte and page write capability (up to 16 bytes), which allows for efficient use of the memory space and minimizes the time required for data writes. Furthermore, it offers a high data retention period of 40 years and is rated for 1 million write/erase cycles, ensuring data stability and longevity for products that need to stand the test of time.

The M24C04-WMN6TP also includes additional features such as Write Control input, which provides hardware protection of the entire memory content. It also supports a partial and full array protection to prevent unintended writes, enhancing the data integrity in critical applications.

In summary, the M24C04-WMN6TP from STMicroelectronics is a robust and reliable EEPROM chip that offers a compact storage solution with high endurance and flexibility, making it an excellent choice for a myriad of applications in the industrial, consumer, and telecommunications markets.
