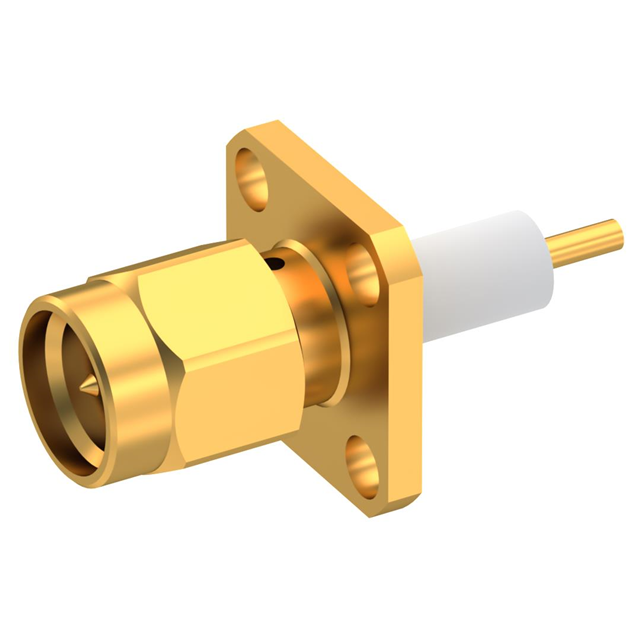

Same model may have multiple batches, images only for reference.

R125444000

Name: R125444000
Brand: Radiall USA, Inc.
SKU: 1349469
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	R125444000
Manufacturer	Radiall USA, Inc.
Catalog	Coaxial Connectors (RF) - Assemblies
Description	SMA / SQUARE FLANGE PLUG RECEPTA / SMA Connector Plug, Male Pin 50Ohm Panel Mount, Through Hole Solder
Datasheet	R125444000 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr	Radiall USA, Inc.
Package	Bulk
Connector Style	SMA
Connector Type	Plug, Male Pin
Contact Termination	Solder
Shield Termination	Solder
Impedance	50Ohm
Mounting Type	Panel Mount, Through Hole
Mounting Feature	Flange
Fastening Type	Threaded
Frequency - Max	18 GHz
Number of Ports	1
Features	Extended Insulation
Housing Color	Gold
Center Contact Material	Brass
Body Material	Stainless Steel
Body Finish	Gold
Center Contact Plating	Gold
Dielectric Material	Polytetrafluoroethylene (PTFE)
Temperature Range - Operating	-65°C ~ 165°C
Voltage Rating	500 V
Mating Cycles	500
Base Product Number	R12544
Standard Package	100
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.69.4010
Win Source Part Number	1349469-R125444000
Ultra Librarian 3D Model	Ultra Librarian R125444000 CAD Model

Alternative Products

Description

The Radiall USA, Inc. R12544 is a coaxial connector (RF) assembly designed for use in electronic devices that require a plug, male pin connector type.

Manufacturer: Radiall USA, Inc.
Product Name: R12544
Connector Type: Plug, Male Pin
Insulation: Extended
Fastening Type: Threaded
Housing Color: Gold
Maximum Frequency: 18 GHz
Impedance: 50 Ohm
Connector Style: SMA
Number of Ports: 1
Contact Termination: Solder
Shield Termination: Solder
Voltage Rating: 500 V
Material: Stainless Steel
Body Finish: Gold
Center Contact Material: Brass
Center Contact Plating: Gold
Dielectric Material: PTFE
Temperature Range: -65°C to 165°C
