Same model may have multiple batches, images only for reference.

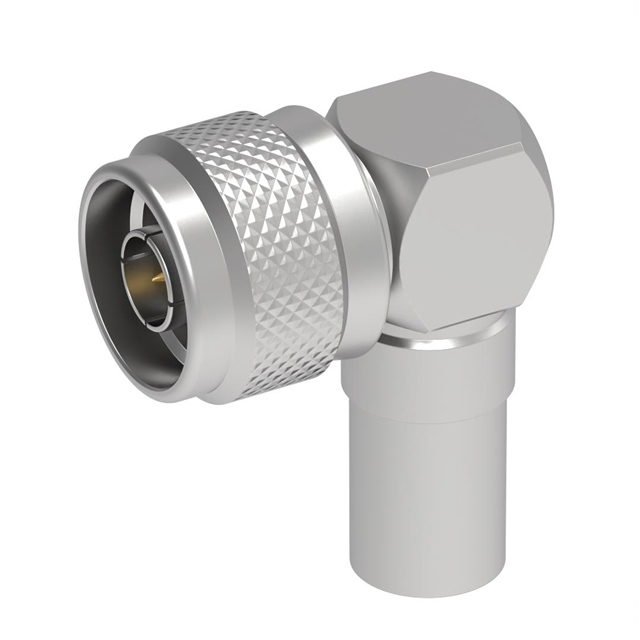

R161185000 Real Image
Same model may have multiple batches, images only for reference.

R161185000

Part No R161185000
Manufacturer Radiall USA, Inc.
Catalog Coaxial Connectors (RF)
Description N / RIGHT ANGLE PLUG FULL CRIMP- / N Type Connector Plug, Male Pin 50Ohm Free Hanging (In-Line), Right Angle Crimp
Datasheet
R161185000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Radiall USA, Inc.
Package Bulk
Connector Style N Type
Connector Type Plug, Male Pin
Contact Termination Crimp
Shield Termination Crimp
Impedance 50Ohm
Mounting Type Free Hanging (In-Line), Right Angle
Cable Group RG-165, 213
Fastening Type Threaded
Frequency - Max 11 GHz
Number of Ports 1
Housing Color Silver
Ingress Protection IP67 - Dust Tight, Waterproof
Center Contact Material Brass
Body Material Brass
Body Finish White Bronze
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -55°C ~ 155°C
Voltage Rating 1400 V
Mating Cycles 500
Insertion Loss 0.15dB
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4010
Other Names 2201-R161185000,R161.185.000
Standard Package 50
Win Source Part Number 1207607-R161185000
Ultra Librarian 3D Model Ultra Librarian R161185000 CAD Model

Description

The Radiall USA, Inc. Coaxial Connector is a high-quality connector designed for use in a range of electronic devices. Radiall USA, Inc.

  • Connector Type: Plug, Male Pin
  • Fastening Type: Threaded
  • Impedance: 50Ohm
  • Maximum Frequency: 11GHz
  • Cable Groups: RG-165 and 213
  • Contact Termination: Crimp
  • Body Material: Brass
  • Center Contact Material: Brass with Gold Plating
