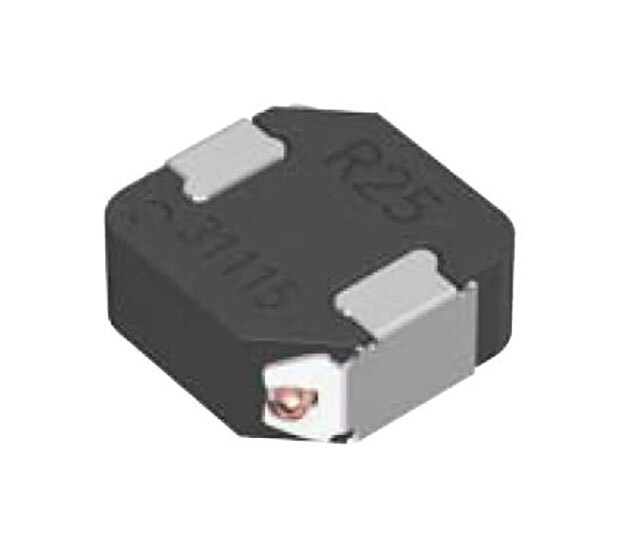

Same model may have multiple batches, images only for reference.
SPM6545VT-1R0M-D TDK Corporation – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SPM6545VT-1R0M-D

Part No SPM6545VT-1R0M-D
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1UH 13.3A 0.0056OHM SM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, ChokesFixed Inductors
Mfr TDK Corporation
Series SPM-VT-D
Part Status Active
Type Drum Core, Wirewound
Material - Core Metal Composite
Inductance 1 μH
Tolerance ±20%
Current Rating (Amps) 13.3 A
Current - Saturation (Isat) 17.9A
Shielding Shielded
DC Resistance (DCR) 5.6mOhm
Ratings AEC-Q200
Operating Temperature -55°C ~ 155°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 6545
Size / Dimension 0.276" L x 0.256" W (7.00mm x 6.50mm)
Height - Seated (Max) 0.177" (4.50mm)
Base Product Number SPM6545VT
Ultra Librarian 3D Model Ultra Librarian SPM6545VT-1R0M-D CAD Model
