Same model may have multiple batches, images only for reference.

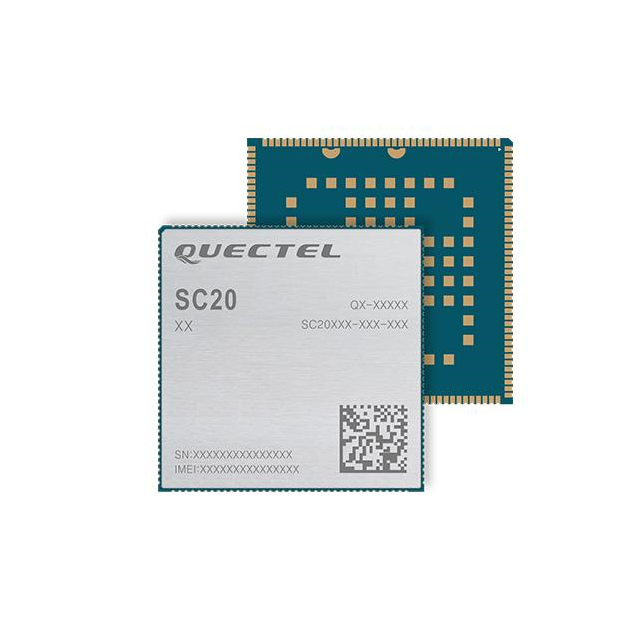

SC20ESA-8GB-STD Real Image
Same model may have multiple batches, images only for reference.

SC20ESA-8GB-STD

Part No SC20ESA-8GB-STD
Manufacturer Quectel
Catalog RF Transceiver Modules
Description RF TXRX MOD BLUETOOTH/WIFI SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Features Bluetooth, Navigation, WiFi 802.11a/b/g/n, Bluetooth v2.1 + EDR, Bluetooth v3.0, Bluetooth v4.1, Bluetooth v4.2, BeiDou, Galileo, GLONASS, GPS, GNSS Transceiver Module 800MHz, 900MHz, 1.8GHz, 1.9GHz, 2.4GHz, 5GHz Antenna Not Included Surface Mount
Manufacturer Quectel
Package Reel - TR
Operating Temperature Range -35°C ~ 75°C
Mounting Surface Mount
Package Module
Family Name SC20
MSL Level 3 (168 Hours)
Other Part Number 2958-SC20ESA-8GB-STDCT, 2958-SC20ESA-8GB-STDTR, 2958-SC20ESA-8GB-STDDKR
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 933121-SC20ESA-8GB-STD
Ultra Librarian 3D Model Ultra Librarian SC20ESA-8GB-STD CAD Model

Description

The SC20ESA-8GB-STD GNSS transceiver module is a surface-mount device designed for use in various electronic devices.

  • Manufacturer: Quectel
  • Technologies: Bluetooth, Navigation, WiFi 802.11a/b/g/n, BeiDou, Galileo, GLONASS, GPS, GNSS
  • Temperature Range: -35°C to 75°C
  • Mounting Type: Surface Mount
  • Package: Reel - TR
  • Family: SC20
