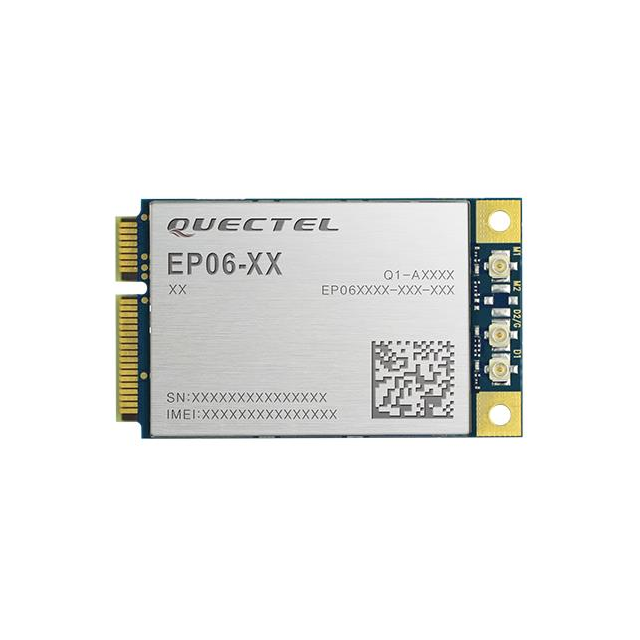

EP06ELA-512-SGA Quectel
Same model may have multiple batches, images only for reference.

EP06ELA-512-SGA

Part No EP06ELA-512-SGA
Manufacturer Quectel
Catalog RF Transceiver Modules
Description RF TXRX MOD CEL/NAV CARD
Datasheet
EP06ELA-512-SGA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1308059-EP06ELA-512-SGA
Category RF and Wireless >RF Transceiver Modules and Modems
Mfr Quectel
Packaging Tray
Part Status Obsolete
RF Family/Standard Cellular, Navigation
Protocol BeiDou, Galileo, GLONASS, GPS, GNSS, HSPA+, LTE, WCDMA
Data Rate 300Mbps
Serial Interfaces I2C, PCM, USB
Antenna Type Antenna Not Included
Utilized IC / Part MDM9240-1
Ultra Librarian 3D Model Ultra Librarian EP06ELA-512-SGA CAD Model

Description

Quectel EP06 is a series of LTE Advanced category 6 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel. 11 LTE technology, it delivers M2M-optimized speeds of 300Mbps downlink and 50Mbps uplink peak data rates.
Designed in the Mini PCIe form factor, EP06 contains 4 variants (EP06-E, EP06-A, EP06-LA① and EP06-CN①) for different target regions and these variants nearly cover all the main stream carriers worldwide.
