Same model may have multiple batches, images only for reference.

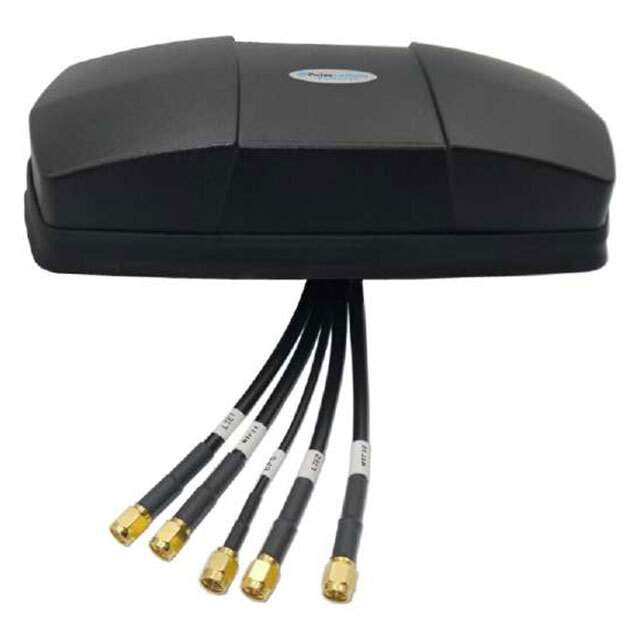

ARM62311DM Real Image
Same model may have multiple batches, images only for reference.

ARM62311DM

Part No ARM62311DM
Manufacturer PulseLarsen Antennas
Catalog RF Antennas
Description RF ANT 829MHZ/1.582GHZ MOD PANEL / 829MHz, 1.582GHz, 2.2GHz, 2.45GHz, 5.537GHz GPS, LTE, Wi-Fi Module RF Antenna 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz 4.9dBi, 5.3dBi, 4.6dBi, 6.6dBi SMA Male (3), RP-SMA Male (3) Panel Mount
Datasheet
ARM62311DM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr PulseLarsen Antennas
Series ARMADILLO
Package Bulk
RF Family/Standard Cellular, Navigation, WiFi
Frequency Group Wide Band
Frequency (Center/Band) 829MHz, 1.582GHz, 2.2GHz, 2.45GHz, 5.537GHz
Frequency Range 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz
Antenna Type Module
Number of Bands 6
VSWR 2, 2.5
Gain 4.9dBi, 5.3dBi, 4.6dBi, 6.6dBi
Features Cable - 5.18m, LNA
Termination SMA Male (3), RP-SMA Male (3)
Ingress Protection IP67
Mounting Type Panel Mount
Height (Max) 1.772" (45.00mm)
Applications GPS, LTE, Wi-Fi
MSL Level 1 (Unlimited)
ECCN 7A994
HTSUS 8529.10.9100
Other Names 1837-1053,ARM62311DM-ND
Standard Package 1
Win Source Part Number 1088650-ARM62311DM
Ultra Librarian 3D Model Ultra Librarian ARM62311DM CAD Model

Description

The PulseLarsen Antennas ARMADILLO is an RF antenna with a wide frequency range of 698MHz to 960MHz, 1.559GHz to 1.606GHz, 1.71GHz to 2.69GHz, 2.4GHz to 2.5GHz, and 5.15GHz to 5.925GHz.

  • Antenna Type: Module
  • Applications: GPS, LTE, and Wi-Fi
  • Mounting: Panel Mount
  • Termination: SMA Male (3) and RP-SMA Male (3)
  • Win Source Part Number: 1088650-ARM62311DM
