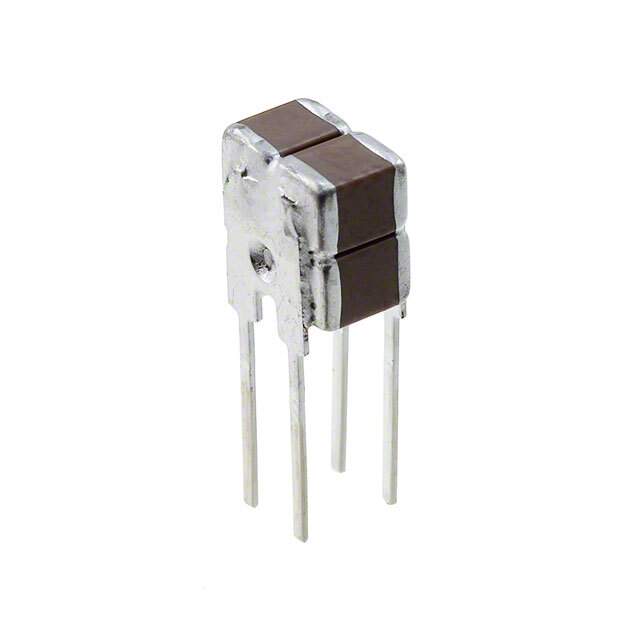

ST103C826MAN02

Part No ST103C826MAN02
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series Mini-TurboCap™
Package Bulk
Capacitance 82 µF
Tolerance ±20%
Voltage - Rated 25V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features Low ESL (Stacked)
Applications SMPS Filtering, Bypass, Decoupling
Mounting Type Through Hole
Package / Case Stacked DIP, 4 Lead
Dimension 0.210" L x 0.190" W (5.33mm x 4.83mm)
Height - Seated (Max) 0.220" (5.59mm)
Lead Spacing 0.150" (3.80mm)
Lead Style Straight
Other Names 478-9341
Standard Package 1
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1307105-ST103C826MAN02
Ultra Librarian 3D Model Ultra Librarian ST103C826MAN02 CAD Model

Description

The Mini-TurboCap™ 1307105-ST103C826MAN02 is a ceramic capacitor with a capacitance of 82 µF.

  • Capacitance: 82 µF
  • Tolerance: ±20%
  • Voltage Rating: 25V
  • Temperature Coefficient: X7R
  • Applications: SMPS filtering, bypass, and decoupling
  • Height: 0.220" (5.59mm)
  • Lead Spacing: 0.150" (3.80mm)
  • Lead Style: Straight
  • Mounting Type: Through hole
  • Package/Case: Stacked DIP, 4 lead
