Same model may have multiple batches, images only for reference.

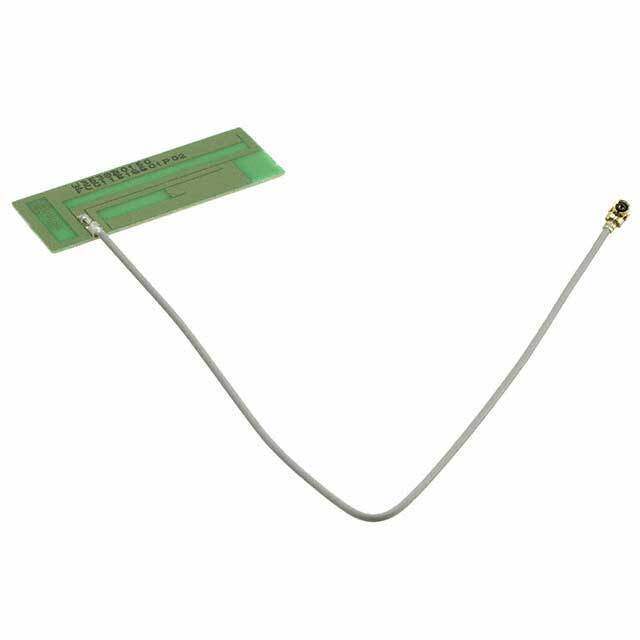

W3538B0150 Pulse Electronics
Same model may have multiple batches, images only for reference.

W3538B0150

Part No W3538B0150
Manufacturer PulseLarsen Antennas
Catalog RF Antennas
Description RF ANT 850/900MHZ PCB TRAC 150MM
Datasheet
W3538B0150 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1306222-W3538B0150
Category RF and Wireless RF Antennas
Manufacturer Pulse Electronics
Packaging Bag
Part Status Active
RF Family/Standard Cellular
Frequency Group Wide Band
Frequency (Center/Band) 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz
Frequency Range 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
Antenna Type PCB Trace
Return Loss -3dB, -6dB
Ultra Librarian 3D Model Ultra Librarian W3538B0150 CAD Model

Description

  • Small form factor
  • PCB size W x L x H (with adhesive): 40 [1.57] x 15 [0.59] x 0.7[0.028]mm [inch]
  • Lead free materials
  • RoHS Compliant Product
  • Mounting with adhesive tape
  • Various cable lengths available
  • Connector options:
  • Hirose connector U.FL-series (I.PEX connector MHF-series compatible)
  • MMCX right angle jack (male)
  • Sunridge MCD series connector
