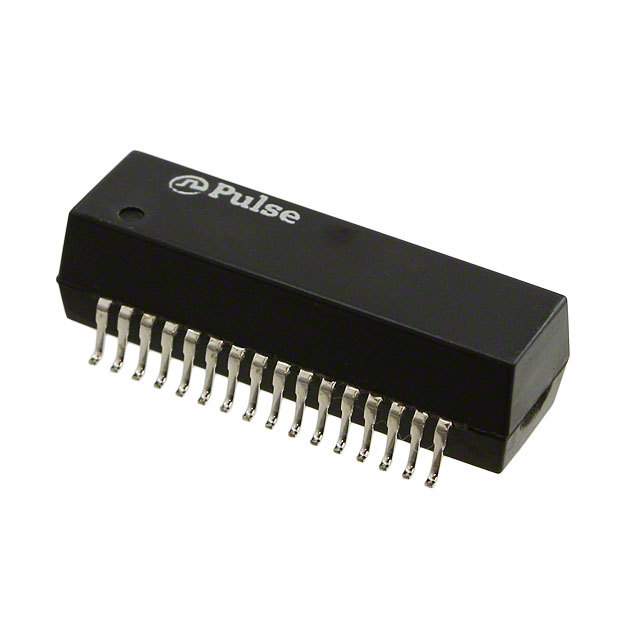

Part No TX1475NL
Manufacturer Pulse
Catalog Pulse Transformers
Description XFRMR OCTAL 1:2/1:1 1.2MH SMD / 1.2mH T1/E1 (Octal) Pulse Transformer 1:2, 1:1 Surface Mount
Datasheet
TX1475NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tube
Product Status Active
Transformer Type T1/E1 (Octal)
Inductance 1.2mH
Mounting Type Surface Mount
Size / Dimension 1.000" L x 0.310" W (25.40mm x 7.87mm)
Height - Seated (Max) 0.295" (7.49mm)
Temperature Range - Operating -40°C ~ 85°C
Weight 0.1 oz (2.85 g)
Standard Package 20 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 383860-TX1475NL
Ultra Librarian 3D Model Ultra Librarian TX1475NL CAD Model

Description

The 383860-TX1475NL is a pulse transformer designed for use in transformers.

  • Size: 1.000" L x 0.310" W (25.40mm x 7.87mm)
  • Height: 0.295" (7.49mm)
  • Transformer Type: T1/E1 (Octal)
  • Inductance: 1.2mH
  • Mounting Type: Surface Mountable
  • Operating Temperature: -40°C to 85°C
  • Series: Pulse
  • Package: Tube
  • Status: Active
  • Standard Package: 20 pcs
  • Weight: 0.1 oz (2.85 g)
  • ECCN: EAR99
  • REACH: Unaffected
  • MSL Level: 3 (168 Hours)
