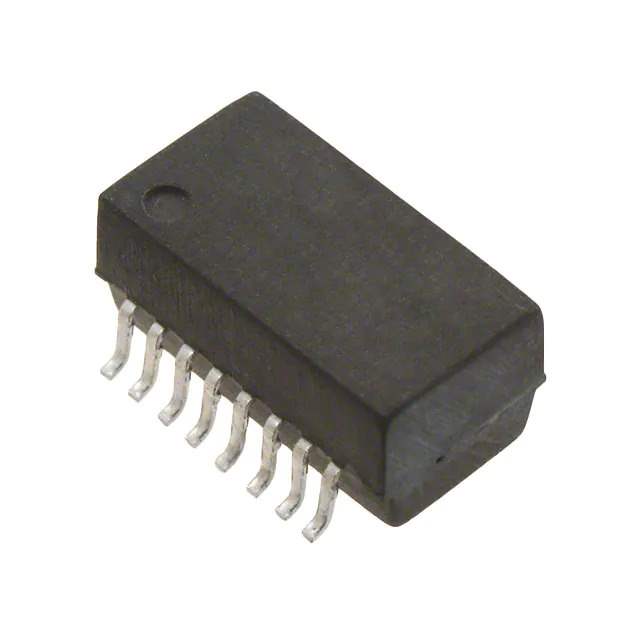

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tube
Product Status Active
Transformer Type T1/E1 (Dual)
Inductance 1.2mH, 1.2mH
Mounting Type Surface Mount
Size / Dimension 0.505" L x 0.280" W (12.83mm x 7.11mm)
Height - Seated (Max) 0.245" (6.22mm)
Temperature Range - Operating -40°C ~ 85°C
Standard Package 40 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 935895-T1090NL
Ultra Librarian 3D Model Ultra Librarian T1090NL CAD Model

Description

The 935895-T1090NL is a pulse transformer designed for use in transformers - pulse transformers. It is a T1/E1 (Dual) transformer with an inductance of 1.2mH, 1.2mH.

  • Type: T1/E1 (Dual)
  • Inductance: 1.2mH, 1.2mH
  • Package: Tube
  • Size: 0.505" L x 0.280" W (12.83mm x 7.11mm)
  • Maximum Seated Height: 0.245" (6.22mm)
  • Operating Temperature Range: -40°C to 85°C
  • Mounting: Surface mountable
  • Standard Package: 40 pcs
  • Product Status: Active product from Pulse
