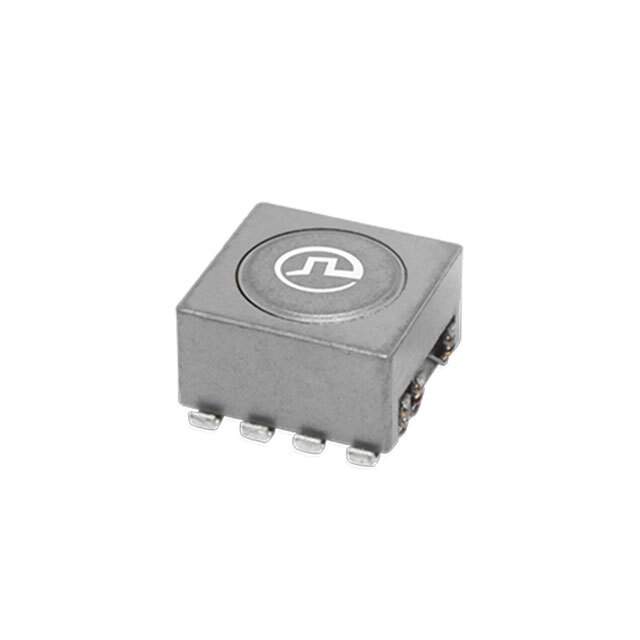

PH9585.002NLT Real Image
Same model may have multiple batches, images only for reference.

PH9585.002NLT

Part No PH9585.002NLT
Manufacturer Pulse
Catalog Switching Converter, SMPS Transformers
Description XFMR FLYBACK DRUM CORE 6V 0.40A / Flyback Converters For SMPS Transformer 2250V Isolation 430kHz Surface Mount
Datasheet
PH9585.002NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Switching Converter, SMPS Transformers
Mfr Pulse Electronics
Series PH9585.XXXNLT
Package Tape & Reel
Applications Flyback Converters
Voltage - Primary 36 ~ 72V
Voltage - Auxiliary 15V
Voltage - Isolation 2250V
Frequency 430kHz
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.250" L x 0.242" W (6.35mm x 6.15mm)
Height - Seated (Max) 0.142" (3.60mm)
Footprint 0.252" L x 0.244" W (6.40mm x 6.20mm)
Style Wirewound
Standard Package 1,200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
HTSUS 0000.00.0000
Win Source Part Number 1349192-PH9585.002NLT
Ultra Librarian 3D Model Ultra Librarian PH9585.002NLT CAD Model

Description

The Pulse Electronics PH9585.XXXNLT 1349192-PH9585.002NLT transformer is a switching converter, SMPS transformer designed for use in flyback converters.

  • Type: Switching converter, SMPS transformer
  • Converter Type: Flyback
  • Packaging: Tape and reel
  • Standard Package: 1,200
  • Frequency: 430kHz
  • Voltage Isolation: 2250V
  • Voltage Primary: 36-72V
  • Voltage Auxiliary: 15V
  • Style: Wirewound
  • Footprint: 0.252" L x 0.244" W
  • RoHS Compliant: Yes
  • Operating Temperature: -40°C to 125°C
  • MSL Level: 1 (unlimited)
  • REACH: Unaffected
  • HTSUS Code: 0000.00.0000
