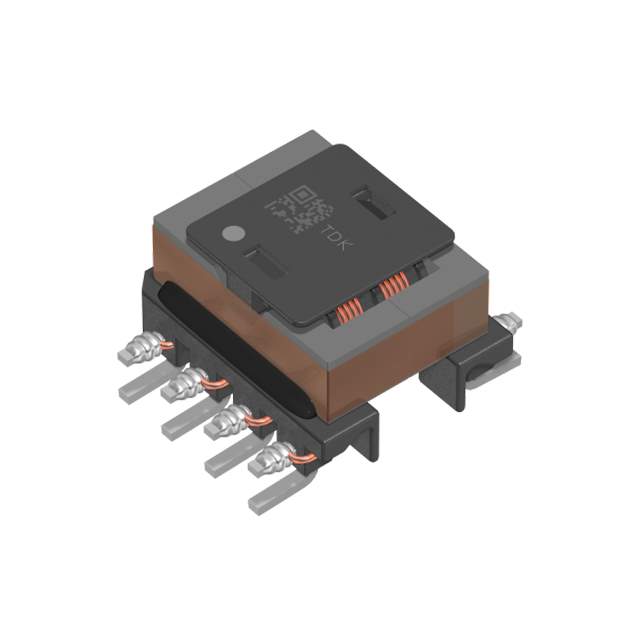

VGT12EEM-200S1A4 Real Image
Same model may have multiple batches, images only for reference.

VGT12EEM-200S1A4

Part No VGT12EEM-200S1A4
Manufacturer TDK Corporation
Catalog Switching Converter, SMPS Transformers
Description TRANSFORMERS FOR IGBT/FET / Flyback Converters For For AC/DC Converters SMPS Transformer 2600Vrms Isolation Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Switching Converter, SMPS Transformers
Mfr TDK Corporation
Series VGT
Package Tape & Reel
Type For AC/DC Converters
Applications Flyback Converters
Voltage - Isolation 2600Vrms
Inductance @ Frequency 10µH @ 100kHz
Temperature Range - Operating -40°C ~ 130°C
Mounting Type Surface Mount
Size / Dimension 0.535" L x 0.425" W (13.60mm x 10.80mm)
Height - Seated (Max) 0.394" (10.00mm)
Footprint 0.583" L x 0.535" W (14.80mm x 13.60mm)
Style Wirewound
Standard Package 250
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1346904-VGT12EEM-200S1A4
Ultra Librarian 3D Model Ultra Librarian VGT12EEM-200S1A4 CAD Model

Description

The TDK Corporation 1346904-VGT12EEM-200S1A4 is a switching converter transformer that is part of the VGT series.

  • Converter Type: Flyback
  • Package: Tape & Reel
  • Size / Dimension: 0.535" L x 0.425" W (13.60mm x 10.80mm)
  • Height - Seated (Max): 0.394" (10.00mm)
  • Standard Package: 250
  • Inductance @ Frequency: 10µH @ 100kHz
  • Voltage - Isolation: 2600Vrms
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C ~ 130°C
