Same model may have multiple batches, images only for reference.

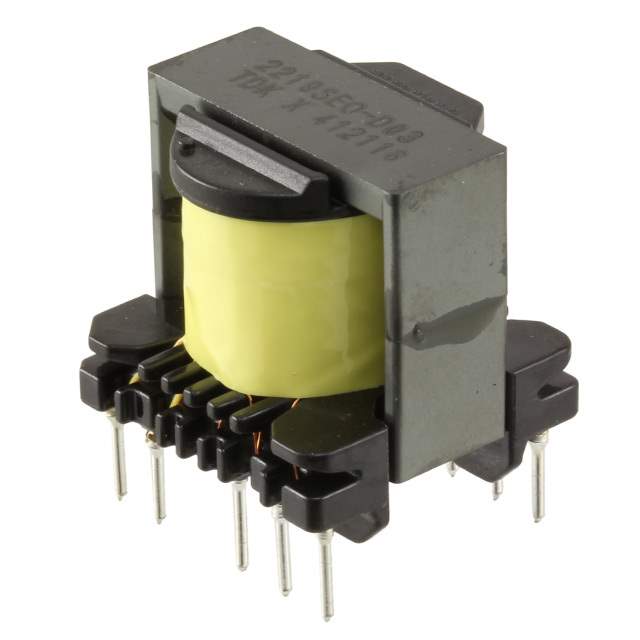

ECO2219SEO-D03V017 Real Image
Same model may have multiple batches, images only for reference.

ECO2219SEO-D03V017

Part No ECO2219SEO-D03V017
Manufacturer TDK Corporation
Catalog Switching Converter, SMPS Transformers
Description INDUCTOR/XFRMR
Datasheet
ECO2219SEO-D03V017 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer TDK Corporation
Series ECO
Packaging Bulk
Type For AC/DC Converters
Applications Flyback Converters
Voltage - Primary 170 ~ 400V
Voltage - Isolation 2000Vrms
Inductance @ Frequency 1.77mH @ 10kHz
Operating Temperature Range -30°C ~ 120°C
Mounting Style Through Hole
Size 0.945" L x 0.906" W (24.00mm x 23.00mm)
Height - Seated (Maximum) 0.988" (25.10mm)
Footprint 0.945" L x 0.906" W (24.00mm x 23.00mm)
Manufacturer Homepage www.tdk.com
Win Source Part Number 745516-ECO2219SEO-D03V017
Popularity Medium
Supply and Demand Status Limited
Family Name ECO2225
ECCN EAR99
Estimated EOL Date Unknown
Ultra Librarian 3D Model Ultra Librarian ECO2219SEO-D03V017 CAD Model

Description

The ECO2219SEO-D03V017 is a transformer manufactured by TDK Corporation.

  • Family: ECO2225
  • Voltage Isolation: 2000Vrms
  • Primary Voltage Range: 170 ~ 400V
  • Size: 0.945" L x 0.906" W (24.00mm x 23.00mm)
  • Height: 0.988" (25.10mm)
  • Inductance: 1.77mH @ 10kHz
  • Supply and Demand Status: Limited
