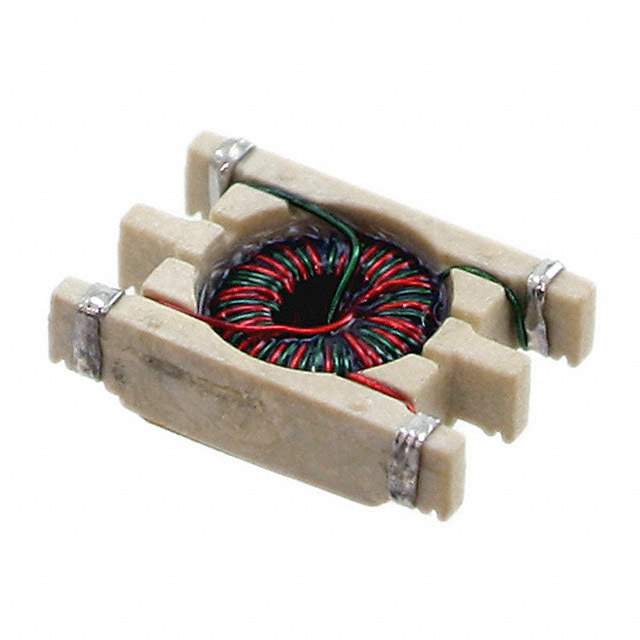

PE-68624NL Real Image
Same model may have multiple batches, images only for reference.

PE-68624NL

Part No PE-68624NL
Manufacturer Pulse
Catalog Common Mode Chokes
Description COMMON MODE CHOKE 2LN SMD
Datasheet
PE-68624NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Pulse Electronics Corporation
Packaging Tube/Rail
Status Active
Filter Type Signal Line
Number of Lines 2
DC Resistance (DCR) (Max) 400 mOhm
Mounting SMD (SMT)
Height (Max) 0.098" (2.49mm)
Dimension Vertical, 6 Flat Lead
Win Source Part Number 137242-PE-68624NL
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PE-68624NL CAD Model

Description

The Pulse Electronics Corporation PE-68624NL is a signal line filter that is designed for use in electronic circuits that require noise suppression. It comes in a tube/rail packaging and has a height of 0.098 inches.
