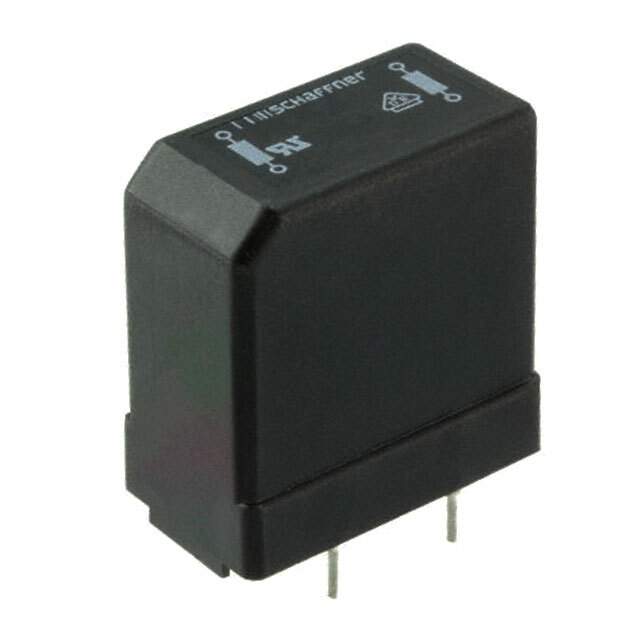

RN232-0.6-02-47M Real Image
Same model may have multiple batches, images only for reference.

RN232-0.6-02-47M

Part No RN232-0.6-02-47M
Manufacturer Schaffner EMC Inc.
Catalog Common Mode Chokes
Description CMC 47MH 600MA 2LN TH
Datasheet
RN232-0.6-02-47M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Schaffner EMC Inc.
Series RN
Packaging Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 47mH @ 10kHz
Current Rating (Maximum) 600mA
DC Resistance (DCR) (Maximum) 1.3 Ohm (Typ)
Voltage Rating - AC 300V
Operating Temperature Range -40°C ~ 100°C
Approvals ENEC, UR, VDE
Mounting Style Through Hole
Dimension 1.220" L x 0.709" W (31.00mm x 18.00mm)
Height (Maximum) 1.362" (34.60mm)
Package Vertical, 4 PC Pin
Win Source Part Number 793306-RN232-0.6-02-47M
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RN232-0.6-02-47M CAD Model

Description

The Schaffner EMC Inc. RN232-0.6-02-47M is from the RN series and is packaged in a tray.

  • Type: Power Line Filter
  • Lines: Two
  • Impedance: 47mH @ 10kHz
  • Packaging: Vertical
  • Pin Count: 4 PC pins
  • Voltage Rating: 300V AC
  • Approvals: ENEC, UR, VDE
