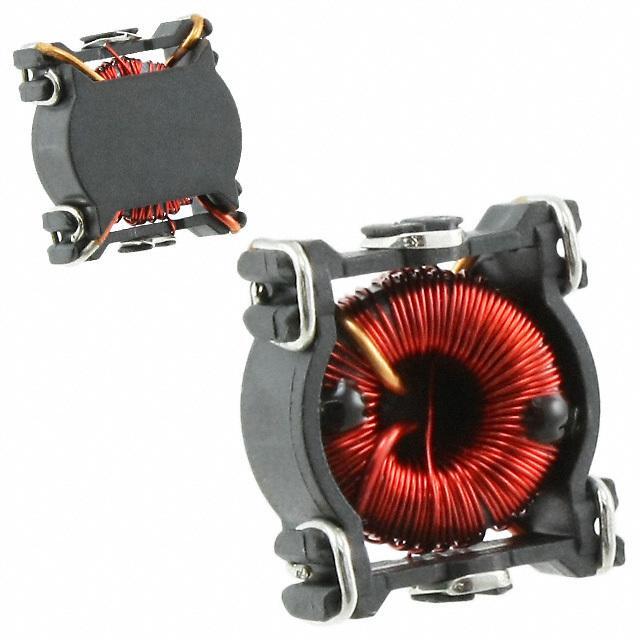

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Package Tube
Product Status Active
Frequency Range 50kHz ~ 500kHz
Type Invasive
Current Rating (Amps) 15 A
Inductance 14.8 mH
DC Resistance (DCR) 1.15mOhm Primary, 930mOhm Secondary
Mounting Type Surface Mount
Size / Dimension 0.495" L x 0.490" W (12.57mm x 12.45mm)
Height - Seated (Max) 0.280" (7.11mm)
Ultra Librarian 3D Model Ultra Librarian PE-68280 CAD Model
