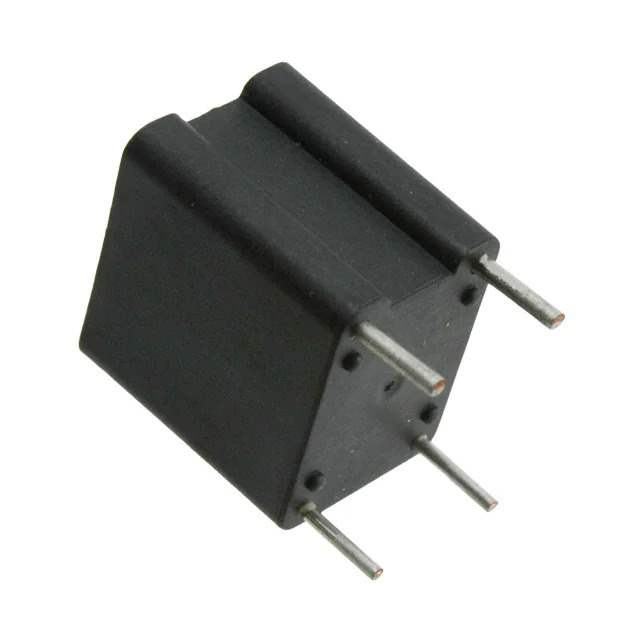

PE-67100NL Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers - Current Sense Transformers
Mfr Pulse
Package Tray
Product Status Active
Frequency Range 10kHz ~ 200kHz
Type Invasive
Current Rating (Amps) 37 A
Inductance 20 mH
DC Resistance (DCR) 56Ohm Primary, 1.4Ohm Secondary
Mounting Type Through Hole
Size / Dimension 0.565" L x 0.750" W (14.35mm x 19.05mm)
Height - Seated (Max) 0.750" (19.05mm)
Termination Style PC Pin
Standard Package 80 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 848173-PE-67100NL
Ultra Librarian 3D Model Ultra Librarian PE-67100NL CAD Model

Description

The 848173-PE-67100NL is a current sense transformer designed for use in transformers - current sense transformers.

  • Transformer Type: Invasive
  • Termination Style: PC Pin
  • Package: Tray
  • Size: 0.565" L x 0.750" W (14.35mm x 19.05mm)
  • Inductance: 20 mH
  • Seated Height: 0.750" (19.05mm)
  • Mounting Type: Through-Hole
  • Standard Package: 80 pcs
  • Current Rating: 37 A
  • Frequency Range: 10kHz to 200kHz
  • Product Status: Active
  • Manufacturer: Pulse
