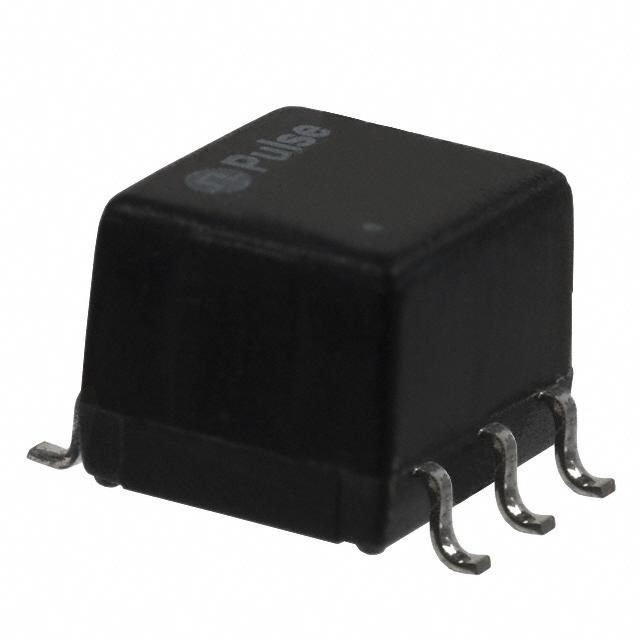

PE-65967T Pulse
Same model may have multiple batches, images only for reference.

PE-65967T

Part No PE-65967T
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1:1 40UH
Datasheet
PE-65967T Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tape & Reel
Product Status Obsolete
Transformer Type T3/E3 (Single)
Inductance 40µH
Mounting Type Surface Mount
Size / Dimension 0.300" L x 0.276" W (7.62mm x 7.00mm)
Height - Seated (Max) 0.250" (6.35mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 500 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 272192-PE-65967T
Ultra Librarian 3D Model Ultra Librarian PE-65967T CAD Model

Description

The 272192-PE-65967T is a pulse transformer designed for use in transformers - pulse transformers.

  • Transformer Type: T3/E3 (Single)
  • Inductance: 40μH
  • Package: Tape & Reel
  • Size: 0.300" L x 0.276" W (7.62mm x 7.00mm)
  • Height (Seated): 0.250" (6.35mm)
  • Operating Temperature: 0°C to 70°C
  • Mounting Type: Surface Mount
  • Standard Package: 500 pcs
  • Product Status: Obsolete
