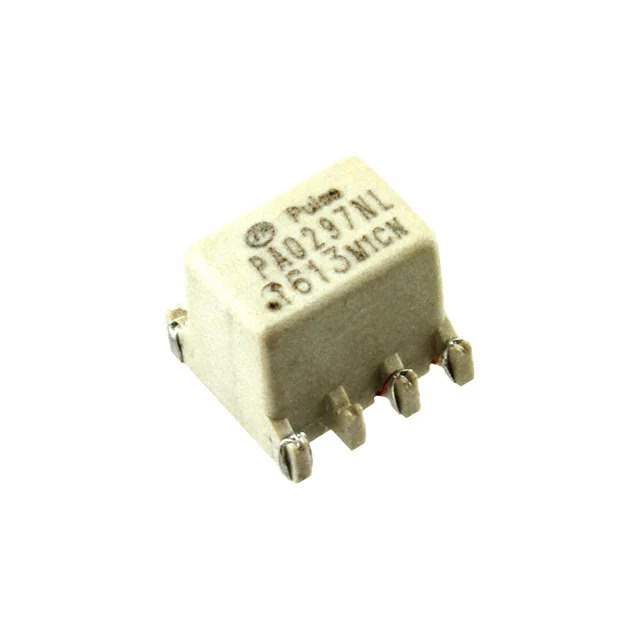

PA0297NLT Real Image
Same model may have multiple batches, images only for reference.

PA0297NLT

Part No PA0297NLT
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 2:1:1 1200UH
Datasheet
PA0297NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tape & Reel
Product Status Active
Inductance 1.2mH
ET (Volt-Time) 27.2VµS
Mounting Type Surface Mount
Size / Dimension 0.355" L x 0.340" W (9.02mm x 8.64mm)
Height - Seated (Max) 0.300" (7.62mm)
Temperature Range - Operating -40°C ~ 130°C
Standard Package 400 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 652318-PA0297NLT
Ultra Librarian 3D Model Ultra Librarian PA0297NLT CAD Model

Description

The 652318-PA0297NLT is an active pulse transformer manufactured by Pulse.

  • Category: Transformers - Pulse Transformers
  • Package: tape & reel
  • Size/Dimension: 0.355" L x 0.340" W (9.02mm x 8.64mm)
  • Mounting: surface mount mounting
  • Inductance: 1.2mH
  • Seated Height: 0.300" (7.62mm)
  • Standard Package: 400 pieces
  • Operating Temperature Range: -40°C to 130°C
  • ECCN: EAR99
  • Product Status: currently active
  • REACH: unaffected
