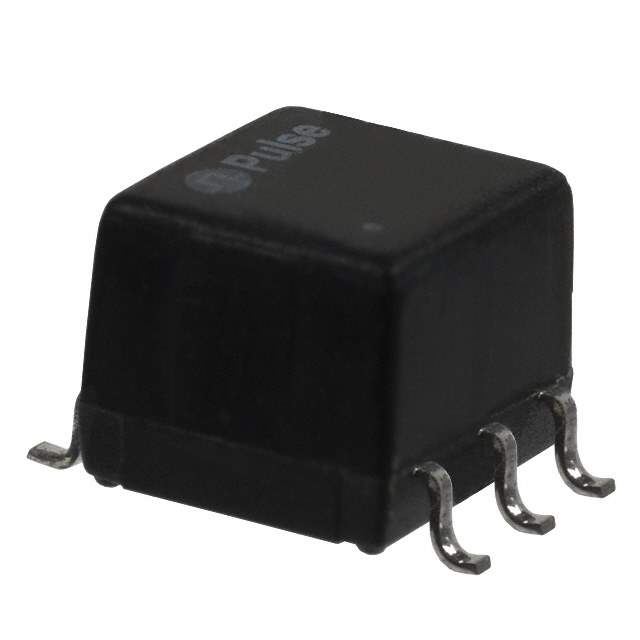

PE-65967NL Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Tube/Rail
Status Active
Transformer Type T3/E3 (Single)
Inductance 40μH
Mounting SMD (SMT)
Height - Seated (Max) 0.245" (6.23mm)
Weight 0.14 oz (3.99g)
Win Source Part Number 134954-PE-65967NL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PE-65967NL CAD Model

Description

The Pulse Electronics Corporation 134954-PE-65967NL T3/E3 Transformer is a surface mount device (SMD) transformer that provides 40μH inductance.

  • Inductance: 40μH
  • Height: 0.245" (6.23mm)
  • Mounting Type: Through Hole
  • Category: Transformers
  • Popularity: Medium
  • Transformer Type: T3/E3
