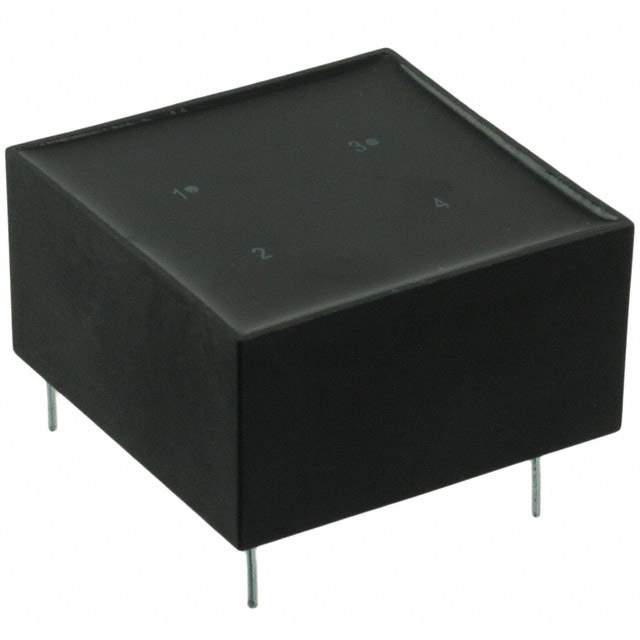

PE-62897NL Real Image
Same model may have multiple batches, images only for reference.

PE-62897NL

Part No PE-62897NL
Manufacturer Pulse
Catalog Common Mode Chokes
Description CMC 2MH 7.5A 2LN TH
Datasheet
PE-62897NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Pulse Electronics Corporation
Packaging Tray
Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 2mH @ 1kHz
Current Rating (Max) 7.5A
DC Resistance (DCR) (Max) 20 mOhm
Temperature Range - Operating -40°C to 125°C
Mounting Through Hole
Height (Max) 0.810" (20.57mm)
Dimension Horizontal, 4 PC Pin
Win Source Part Number 209756-PE-62897NL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PE-62897NL CAD Model

Description

Pulse Electronics Corporation's power line filter is a high-quality component that is designed to provide excellent performance and reliability.

  • Manufacturer: Pulse Electronics Corporation
  • Current Rating: 7.5A
  • Inductance: 2mH @ 1kHz
  • DC Resistance: 20 mOhm
  • Temperature Range: -40°C to 125°C
  • Mounting Style: Through-hole
  • Dimension: Horizontal, 4 PC pin
  • Popularity: Medium
  • Supply and Demand Status: Limited
