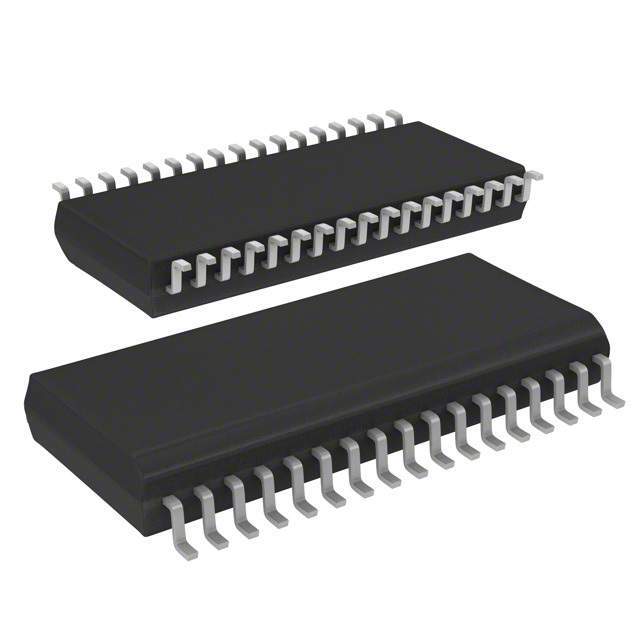

The ST72F63BK2M1 is a versatile and powerful microcontroller from STMicroelectronics designed for embedded applications requiring a high level of integration and low power consumption. This microcontroller is part of the ST7 family, which is well-known for its robustness, performance, and reliability in a wide array of applications.

Key Features

• Core: The ST72F63BK2M1 features an 8-bit CPU core operating at a maximum frequency of 8 MHz, providing a good balance between processing power and energy efficiency.
• Memory: It comes with 8 KB of Flash program memory and 384 bytes of RAM, suitable for small to medium-sized applications.
• Peripherals: A range of integrated peripherals enhances the functionality of the microcontroller. These include an 8-bit ADC (Analog to Digital Converter), a 3-channel timer with PWM (Pulse Width Modulation) capability, and a synchronous serial communication interface (SPI).
• I/O Ports: The device offers up to 28 programmable I/O lines, allowing for flexible interfacing with external components and modules.
• Operating Voltage: The microcontroller operates within a voltage range of 3.0 to 5.5 V, accommodating various power supply designs.
• Temperature Range: It is designed to function within an industrial temperature range from -40°C to +85°C, ensuring reliable operation under harsh conditions.

Applications

The ST72F63BK2M1 is ideal for a variety of applications including, but not limited to, automotive systems, home appliances, industrial controls, and consumer electronics. Its robust set of features and peripherals makes it particularly well-suited for tasks such as motor control, system management, and user interface control.

Development Support

STMicroelectronics provides extensive support for the development of applications using the ST72F63BK2M1. Developers can access a range of tools including software libraries, development kits, and reference designs to expedite the development process and bring products to market faster.

For detailed technical specifications and datasheets, or to order samples, please visit the STMicroelectronics website or contact your local ST sales office.
