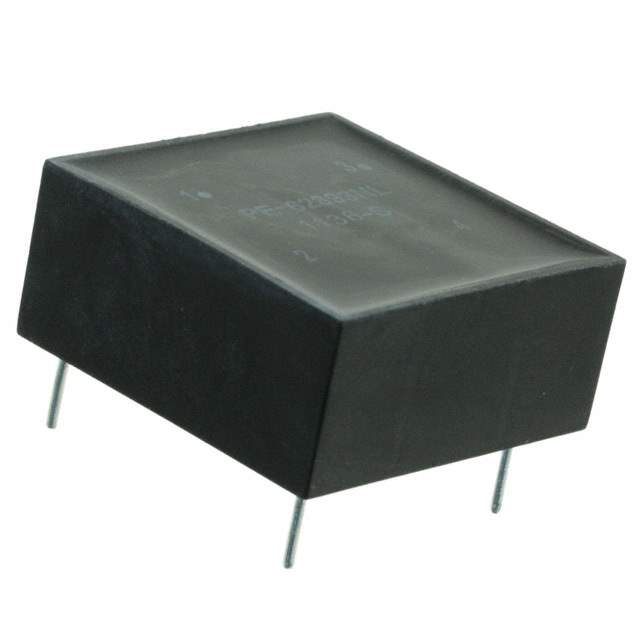

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Filters
Manufacturer Pulse Electronics Corporation
Packaging Tray
Status Active
Number of Lines 2
Inductance @ Frequency 1mH @ 1kHz
Current Rating (Max) 6A
DC Resistance (DCR) (Max) 20 mOhm
Temperature Range - Operating -40°C to 125°C
Mounting Through Hole
Height (Max) 0.610" (15.49mm)
Dimension Horizontal, 4 PC Pin
Win Source Part Number 209754-PE-62893NL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PE-62893NL CAD Model

Description

The Pulse Electronics Corporation 209754-PE-62893NL is a tray packaged electronic component with a voltage rating of DC and a current rating (Max) of 6A.

  • Manufacturer: Pulse Electronics Corporation
  • Part Number: 209754-PE-62893NL
  • Package: Tray
  • Voltage Rating: DC
  • Current Rating (Max): 6A
  • Mounting: Through Hole
  • Height (Max): 0.610" (15.49mm)
  • Lines: 2
  • Inductance: 1mH @ 1kHz
  • DC Resistance (DCR) (Max): 20 mOhm
  • Supply and Demand Status: Limited
