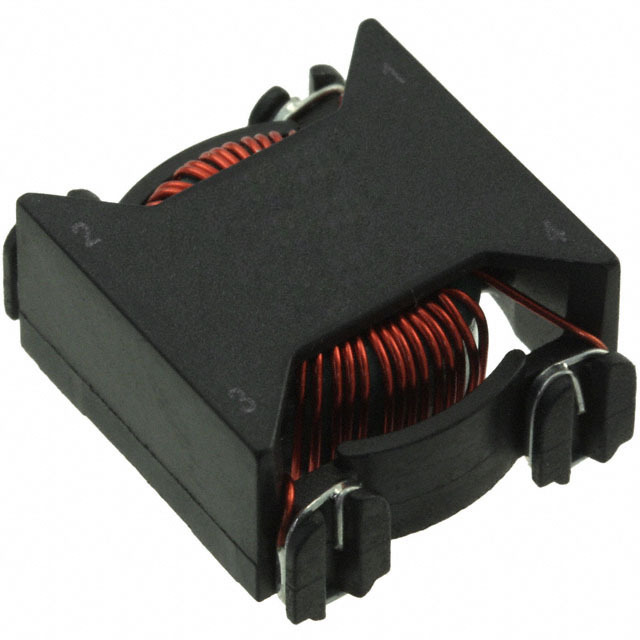

PE-53913 Pulse – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PE-53913

Part No PE-53913
Manufacturer Pulse
Catalog Common Mode Chokes
Description CMC 1A 2LN SMD
Datasheet
PE-53913 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Package Tube
Product Status Obsolete
Number of Lines 2
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 450mOhm
Voltage Rating - AC 250V
Operating Temperature -40°C ~ 130°C
Mounting Type Surface Mount
Size / Dimension 0.645" L x 0.560" W (16.38mm x 14.22mm)
Height (Max) 0.350" (8.89mm)
Package / Case Horizontal, 4 PC Pad
Ultra Librarian 3D Model Ultra Librarian PE-53913 CAD Model
