Same model may have multiple batches, images only for reference.

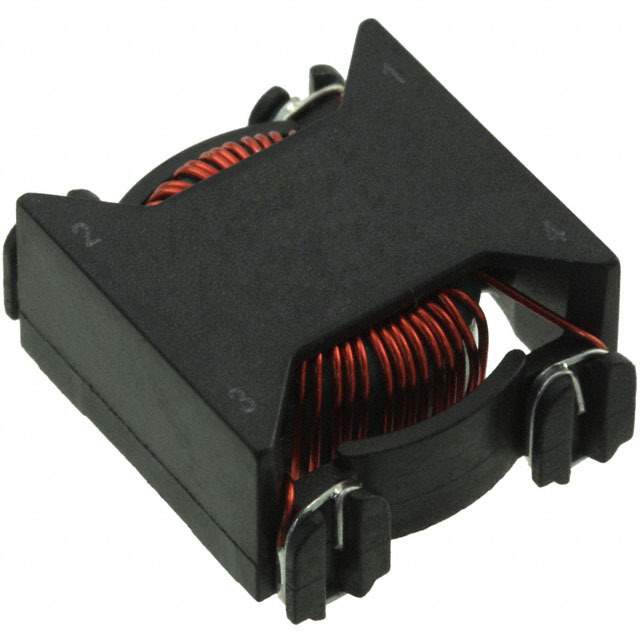

PE-53912NLT Real Image
Same model may have multiple batches, images only for reference.

PE-53912NLT

Part No PE-53912NLT
Manufacturer Pulse
Catalog Common Mode Chokes
Description COMMON MODE CHOKE 2.5A 2LN SMD
Datasheet
PE-53912NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Pulse Electronics Corporation
Packaging Reel package
Filter Type Power Line
Number of Lines 2
Current Rating (Maximum) 2.5A
DC Resistance (DCR) (Maximum) 80 mOhm
Voltage Rating - AC 250V
Operating Temperature Range -40°C ~ 130°C
Mounting SMD
Dimension 0.770" L x 0.670" W (19.56mm x 17.02mm)
Height (Maximum) 0.390" (9.90mm)
Package Horizontal, 4 PC Pad
Win Source Part Number 791648-PE-53912NLT
Family Name PE-53
Introduction Date April 29, 2002
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2022
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PE-53912NLT CAD Model

Description

The Pulse Electronics Corporation 791648-PE-53912NLT is a high-quality filter designed for power line applications.

  • Package: Horizontal, 4 PC pad
  • Operating Temperature: -40°C to 130°C
  • Voltage Rating: 250V AC
  • Supply and Demand Status: Limited
