PE-53912 Pulse – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

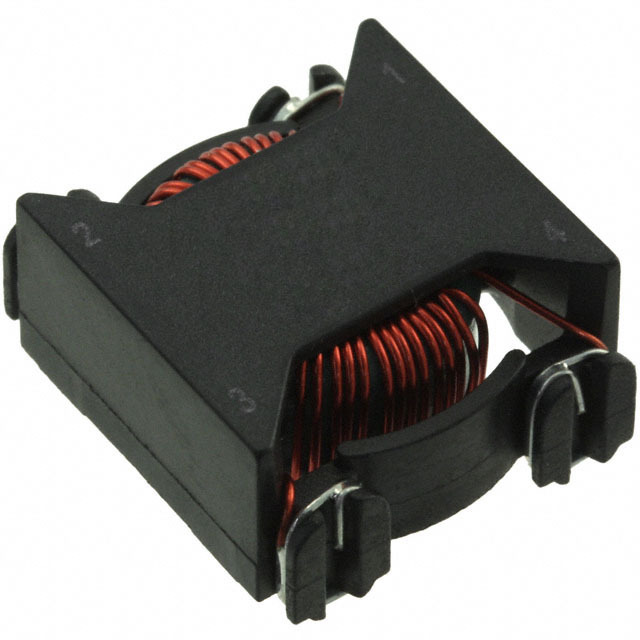

PE-53912

Part No PE-53912
Manufacturer Pulse
Catalog Common Mode Chokes
Description CMC 2.5A 2LN SMD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Package Tube
Product Status Obsolete
Number of Lines 2
Current Rating (Max) 2.5A
DC Resistance (DCR) (Max) 80mOhm
Voltage Rating - AC 250V
Operating Temperature -40°C ~ 130°C
Mounting Type Surface Mount
Size / Dimension 0.770" L x 0.670" W (19.56mm x 17.02mm)
Height (Max) 0.390" (9.90mm)
Package / Case Horizontal, 4 PC Pad
Ultra Librarian 3D Model Ultra Librarian PE-53912 CAD Model

Description

NULL
