Same model may have multiple batches, images only for reference.

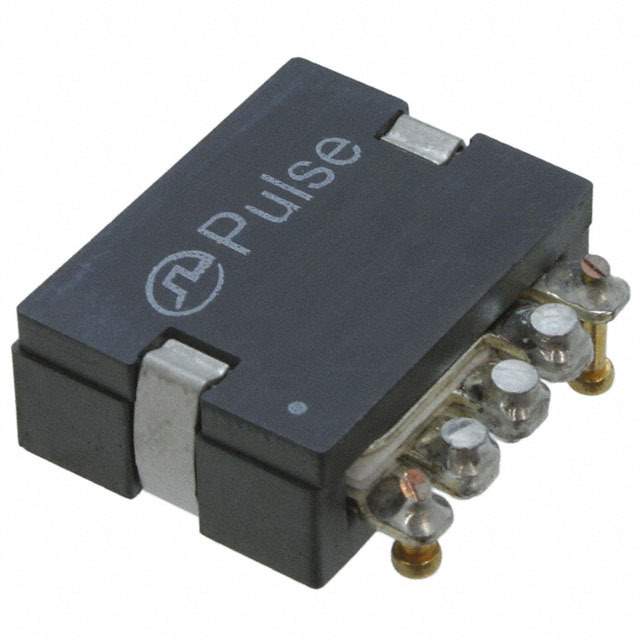

PA1494.442NLT Real Image
Same model may have multiple batches, images only for reference.

PA1494.442NLT

Part No PA1494.442NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 4.4UH 14A 1.8 MOHM SMD / 4.4 µH Shielded Planar Inductor 14 A 1.8mOhm Max Nonstandard
Datasheet
PA1494.442NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Pulse Electronics Power
Series PA1494NL
Package Tape & Reel (TR)
Type Planar
Inductance 4.4 µH
Tolerance ±15%
Current Rating (Amps) 14 A
Current - Saturation (Isat) 16A
Shielding Shielded
DC Resistance (DCR) 1.8mOhm Max
Temperature Range - Operating -40°C ~ 130°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.780" L x 0.770" W (19.81mm x 19.56mm)
Height - Seated (Max) 0.290" (7.37mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 250
Win Source Part Number 1197467-PA1494.442NLT
Ultra Librarian 3D Model Ultra Librarian PA1494.442NLT CAD Model

Description

The PA1494.442NLT is a fixed inductor from Pulse Electronics Power's PA1494NL series.

  • Type: Planar type inductor
  • Package: Shielded package
  • Packaging: Tape and reel
  • Inductance: 4.4 µH
  • Maximum Current: 14 A
  • Height: 0.290" (7.37mm) when seated
  • DC Resistance (DCR): 1.8mOhm max
  • Mounting: SMD (SMT) technology
  • Tolerance: ±15%
  • Temperature Rating: -40°C ~ 130°C
  • Package/Case: Nonstandard
  • REACH: Unaffected
  • HTSUS: 8504.50.4000
