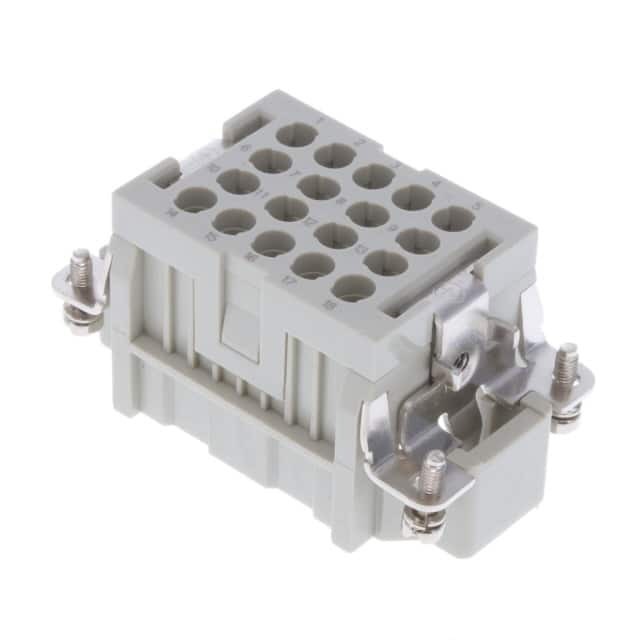

HEE-018-M TE Connectivity
Same model may have multiple batches, images only for reference.

HEE-018-M

Part No HEE-018-M
Manufacturer TE Connectivity
Catalog Heavy Duty Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Heavy Duty Connectors - Inserts, Modules
Mfr TE Connectivity AMP Connectors
Series HEE
Package Bulk
Connector Type Insert without Contacts
Gender Male
Number of Positions 18+Ground
Size H10B
Termination Style Crimp
Voltage Rating 500V
Current Rating (Amps) 16A
Contact Type CEM, DEM
Temperature Range - Operating -40°C ~ 125°C
Housing Material Polycarbonate (PC)
Material Flammability Rating EN45545
Base Product Number HEE-018
MSL Level Not Applicable
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1315130-HEE-018-M
Ultra Librarian 3D Model Ultra Librarian HEE-018-M CAD Model

Description

The HEE-018-M is a male heavy-duty connector insert designed by TE Connectivity AMP Connectors.

  • Series: HEE
  • Positions: 18+Ground
  • Termination Style: Crimp
  • Housing Material: Polycarbonate (PC)
  • Flammability Rating: EN45545
  • Contact Type: CEM and DEM
  • Voltage Rating: 500V
  • Current: 16A
  • Temperature Range: -40°C to 125°C
  • Packaging: Bulk
  • ECCN: EAR99
