CT02-100 ice Components, Ins. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Frequency Range 1.5MHz Max
Type Non-Invasive (Solid Core)
Current Rating (Amps) 18 A
Inductance 1.8 mH
ET (Volt-Time) 150VµS
Turns Ratio - Primary 1:100
Current Ratio 100:1
DC Resistance (DCR) 4.8Ohm
Mounting Type Surface Mount
Size / Dimension 0.256" L x 0.236" W (6.50mm x 6.00mm)
Height - Seated (Max) 0.181" (4.60mm)
Termination Style J Lead
Package Cut Tape (CT)
Supply and Demand Status Shortage
Win Source Part Number 1545070-CT02-100
Ultra Librarian 3D Model Ultra Librarian CT02-100 CAD Model

You May Also Be Interested in

B82801A824A100 Real Image
B82801A824A100
EPCOS (TDK)
SMT current sense transformers
Lowest to $0.9417
ECAD model for B82801A824A100
L18P010D15 Real Image
L18P010D15
Tamura
SENSOR CURRENT HALL 10A AC/DC
Lowest to $10.5063
ECAD model for L18P010D15
PA3655NL Pulse – Price, Stock & Datasheet
PA3655NL
Pulse
CURR SENSE XFMR 34A T/H
Need more? Email Us
ECAD model for PA3655NL

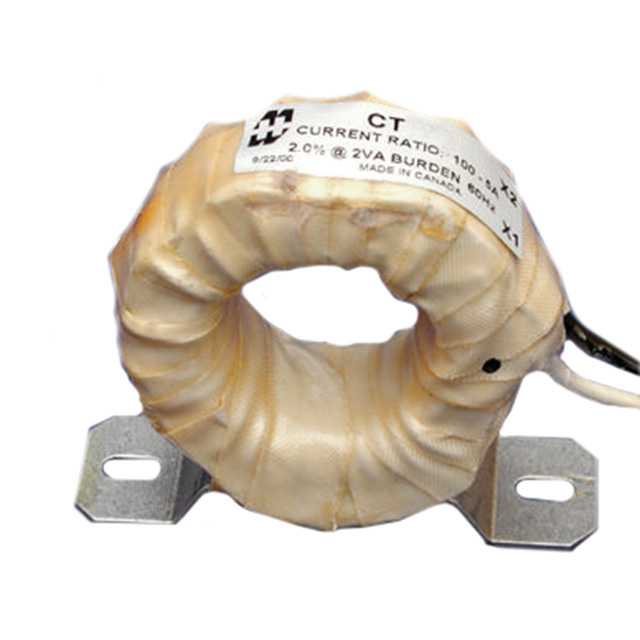

Picture of CT50A
