Same model may have multiple batches, images only for reference.

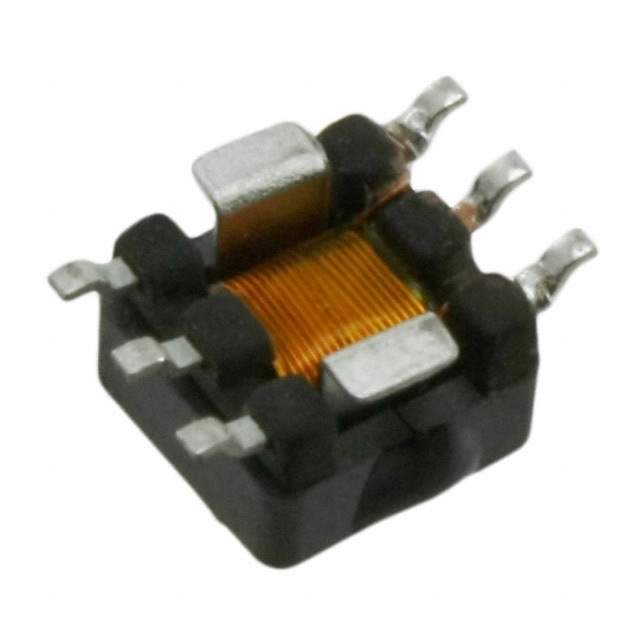

P8208NLT Real Image
Same model may have multiple batches, images only for reference.

P8208NLT

Part No P8208NLT
Manufacturer Pulse
Catalog Current Sense Transformers
Description XFRMR CURR SENSE 2.0MH 1:100 SMD
Datasheet
P8208NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Frequency Range 50kHz to 1MHz
Type Invasive
Inductance 2mH
DC Resistance (DCR) 6 mOhm Primary, 5.5 Ohm Secondary
Mounting SMD (SMT)
Height - Seated (Max) 0.217" (5.50mm)
Termination Style Gull Wing
Win Source Part Number 1086122-P8208NLT
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian P8208NLT CAD Model

Description

The Pulse Electronics Corporation 1086122-P8208NLT is an invasive transformer suitable for use in electronic circuits.

  • Package: Reel - TR
  • Maximum Height: 0.217" (5.50mm)
  • Frequency Range: 50kHz to 1MHz
  • Product Status: Active
  • Suitable for: Transformer applications
  • Supply and Demand Status: Balanced
