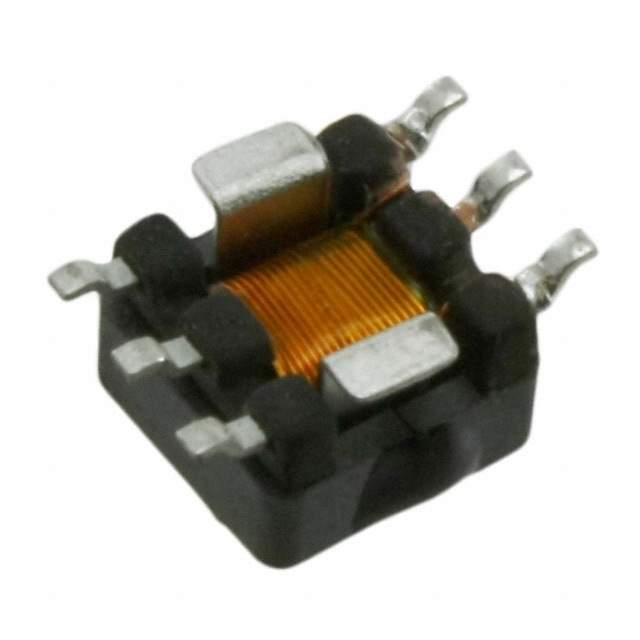

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers>Current Sense Transformers
Mfr Pulse Electronics Power
Series P820X
Package Tape & Reel
Frequency Range 50kHz ~ 1MHz
Type Invasive
Inductance 980 µH
DC Resistance (DCR) 6mOhm Primary, 4.75Ohm Secondary
Mounting SMD (SMT)
Dimension 0.284" L x 0.330" W (7.21mm x 8.38mm)
Height - Seated (Max) 0.217" (5.50mm)
Termination Style Gull Wing
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Names 553-1522-2,553-1522-1,553-1522-6,P8207NLT-ND
Standard Package 900
Win Source Part Number 989887-P8207NLT
Ultra Librarian 3D Model Ultra Librarian P8207NLT CAD Model

Description

The P8207NLT is a current sense transformer that belongs to the transformers category.

  • Category: Transformers
  • Series: P820X
  • Type: Invasive
  • Termination Style: Gull Wing
  • Package: Tape & Reel
  • Mounting Type: SMD (SMT)
  • Inductance: 980 µH
  • Height: 0.217" (5.50mm)
  • Manufacturer: Pulse Electronics Power
  • DC Resistance: 6mOhm Primary, 4.75Ohm Secondary
  • Cross-Reference: 553-1522-2, 553-1522-1, 553-1522-6, P8207NLT-ND
