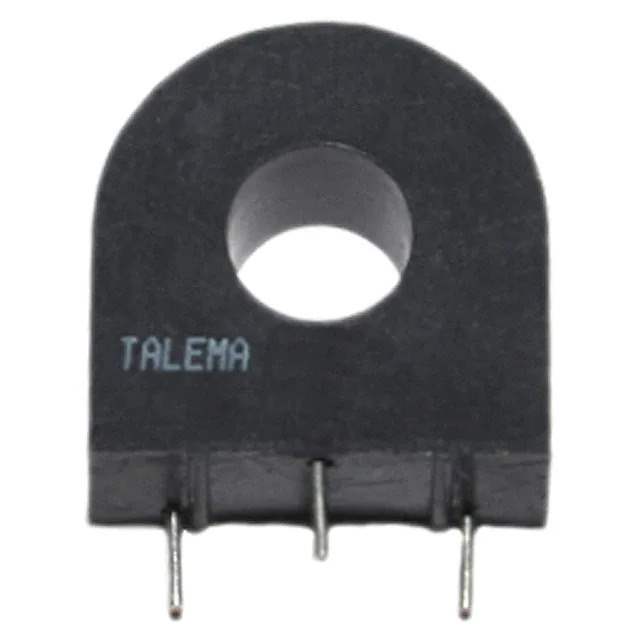

AC1010 Real Image
Same model may have multiple batches, images only for reference.

AC1010

Part No AC1010
Manufacturer Talema Group LLC
Catalog Current Sense Transformers
Description CURR SENSE XFMR 10A T/H
Datasheet
AC1010 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Current Sense Transformers
Mfr Talema Group LLC
Series AC
Package Tray
Product Status Active
Frequency Range 50/60Hz
Type Non-Invasive (Solid Core)
Current Rating (Amps) 10 A
DC Resistance (DCR) 41.8Ohm
Mounting Type Through Hole
Size / Dimension 0.937" L x 0.438" W (23.80mm x 11.12mm)
Height - Seated (Max) 0.937" (23.80mm)
Termination Style PC Pin
Weight 0.036 lb (16.33 g)
Standard Package 300 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 909173-AC1010
Ultra Librarian 3D Model Ultra Librarian AC1010 CAD Model

Description

The Talema Group LLC 909173-AC1010 is a current sense transformer from the AC series.

  • Transformer Type: Current Sense Transformer
  • Construction: Non-Invasive (Solid Core)
  • Termination Style: PC Pin
  • Size: 0.937" L x 0.438" W (23.80mm x 11.12mm)
  • Seated Height: 0.937" (23.80mm)
  • Mounting: Through-Hole
  • Packaging: Tray Package with 300 pieces
  • Current Rating: 10 A
  • DC Resistance (DCR): 41.8Ohm
  • Frequency Range: 50/60Hz
  • Manufacturer: Talema Group LLC
  • REACH: Unaffected
  • ECCN: EAR99
