Same model may have multiple batches, images only for reference.

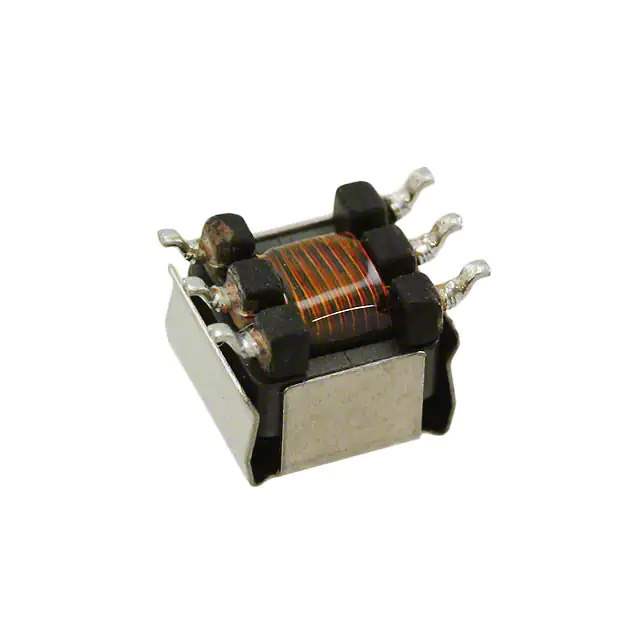

P0926NL Real Image
Same model may have multiple batches, images only for reference.

P0926NL

Part No P0926NL
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1:1:1 300UH
Datasheet
P0926NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tray
Product Status Active
Inductance 300µH
ET (Volt-Time) 23.8VµS
Mounting Type Surface Mount
Size / Dimension 0.260" L x 0.315" W (6.60mm x 8.00mm)
Height - Seated (Max) 0.210" (5.33mm)
Temperature Range - Operating -40°C ~ 130°C
Standard Package 120 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 851310-P0926NL
Ultra Librarian 3D Model Ultra Librarian P0926NL CAD Model

Description

The 851310-P0926NL is a pulse transformer designed for various applications.

  • Size: 6.60mm x 8.00mm
  • Height: 5.33mm
  • Inductance: 300µH
  • ET (Volt-Time): 23.8VµS
  • Operating Temperature: -40°C to 130°C
  • Mounting Type: Surface Mount
  • Package: Tray
