Same model may have multiple batches, images only for reference.

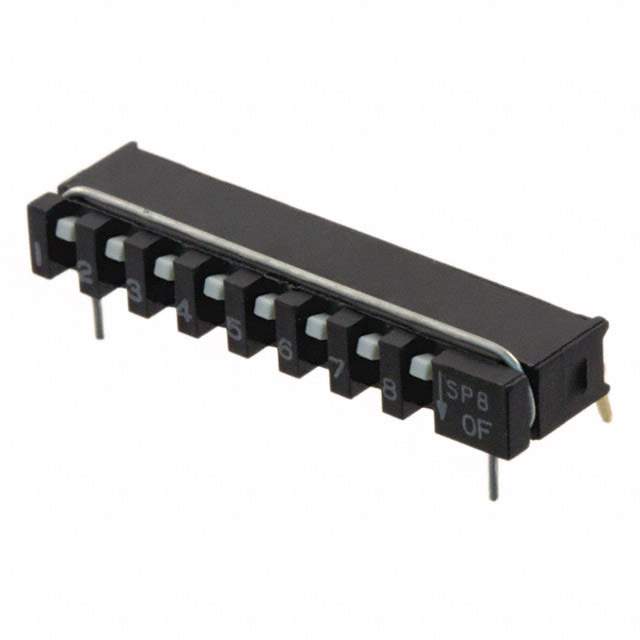

SPA08AB Real Image
Same model may have multiple batches, images only for reference.

SPA08AB

Part No SPA08AB
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 10MA 20V / Dip Switch SPST 8 Position Through Hole, Right Angle Slide (Standard) Actuator 10mA 20VDC
Datasheet
SPA08AB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SPA
Circuit SPST
Number of Positions 8
Current Rating (Amps) 10mA
Voltage Rating 20VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.169" (4.30mm)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Temperature Range - Operating -30°C ~ 60°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.942" (23.92mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Other Names CKN9443,2266-SPA08AB,*SPA08AB
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233690-SPA08AB
Ultra Librarian 3D Model Ultra Librarian SPA08AB CAD Model

Description

The SPA08AB DIP switch is a high-quality switch from C&K.

  • Manufacturer: C&K
  • Circuit: 8-position SPST
  • Actuator Type: Slide
  • Termination Style: PC pin
  • Voltage Rating: 20VDC
  • Contact Finish: Gold
  • Contact Material: Beryllium copper
  • Electrical Life: 1,000 cycles
  • Mechanical Life: 1,000 cycles
  • Ingress Protection: IP30
  • Temperature Range: -30°C to 60°C
  • Mounting Type: Through-hole, right-angle
  • Actuator Level: Washable
