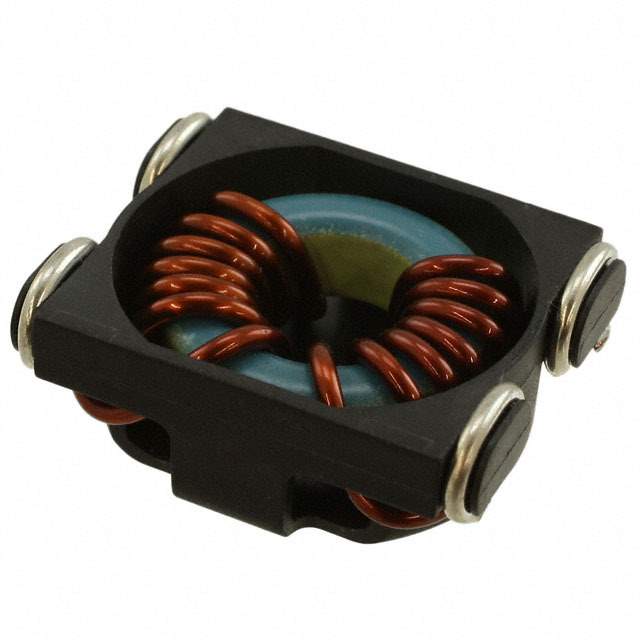

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Pulse Electronics Power
Series HCCI-80
Package Tube
Number of Coils 2
Inductance - Connected In Parallel 5.7 µH
Inductance - Connected In Series 22.8 µH
Tolerance ±15%
Current Rating - Parallel 27 A
Current Rating - Series 13.5 A
DC Resistance (DCR) - Parallel 2.5mOhm Max
DC Resistance (DCR) - Series 10.1mOhm Max
Shielding Unshielded
Temperature Range - Operating -40°C ~ 130°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 1.220" L x 1.000" W (30.99mm x 25.40mm)
Height 0.500" (12.70mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 553-2735,P0597NL-ND,-P0597NL,553-2735-5,553-2735-ND
Standard Package 20
Win Source Part Number 1025773-P0597NL
Ultra Librarian 3D Model Ultra Librarian P0597NL CAD Model

Description

The 1025773-P0597NL is an inductor array with two coils connected in series and parallel.

  • Mounting Type: Surface Mount
  • Tolerance: ±15 percent
  • Height: 0.500" (12.70mm)
  • Number of Coils: 2
  • Inductance (Series): 22.8 µH
  • Inductance (Parallel): 5.7 µH
  • Current Rating (Parallel): 27 A
  • Current Rating (Series): 13.5 A
  • DC Resistance (DCR) (Parallel): 2.5mOhm Max
  • DC Resistance (DCR) (Series): 10.1mOhm Max
  • Temperature Range: -40°C ~ 130°C
  • HTSUS: 8504.50.4000
