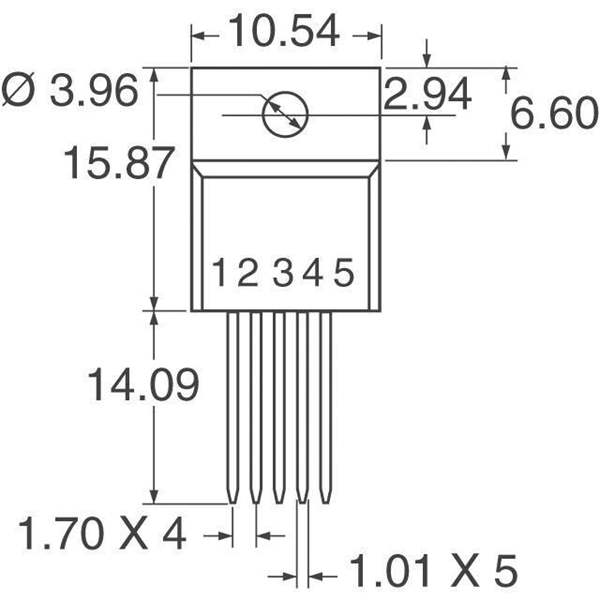

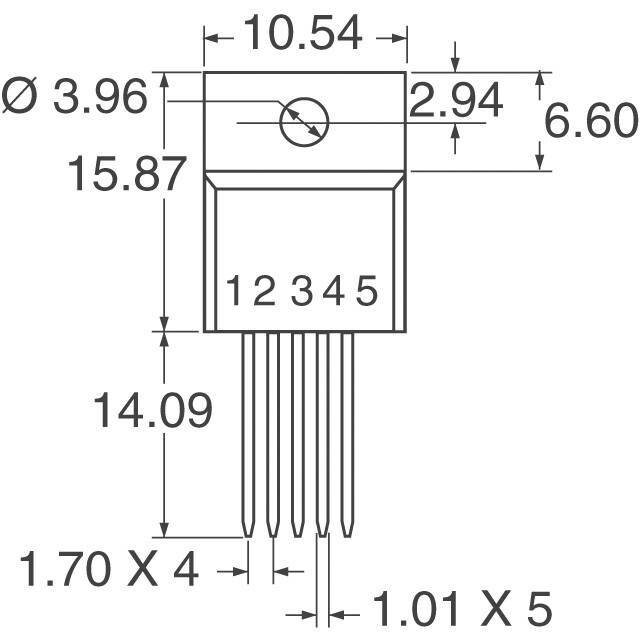

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Siliconix
Packaging Tube
Status Obsolete
Transistor Polarity N-Channel
Technology MOSFET
Vds - Drain-Source Breakdown Voltage 500V
Id - Continuous Drain Current 8A
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Maximum) at Id, Vgs 850mOhm at 4.8A, 10V
Gate Source Voltage(th) (Maximum) at Id 4V at 250μA
Gate Charge (Qg) (Maximum) at Vgs 67nC at 10V
Gate Source Voltage (Maximum) ±20V
Input Capacitance (Ciss) (Maximum) at Vds 1300pF at 25V
FET Feature Current Sensing
Power Dissipation (Maximum) 125W
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Through Hole
Supplier Device Package TO-220-5
Manufacturer Package TO-220-5
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1186856-IRC840PBF
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IRC840PBF CAD Model

Description

The IRC840PBF is a MOSFET electronic component manufactured by Vishay Siliconix.

  • Supply and Demand Status: Limited
  • Status: Obsolete
  • Manufacturer Homepage: www.irf.com
  • Packaging: Tube
  • Mounting Style: Through-Hole
  • FET Type: Current Sensing
  • Transistor Polarity: N-Channel
  • Supplier Device Package: TO-220-5
  • Drive Voltage: 10V (max Rds on, min Rds on)
  • Power Dissipation (Maximum): 125W
  • MSL Level: 1
  • Vds - Drain-Source Breakdown Voltage: 500V
  • Id - Continuous Drain Current: 8A
  • Rds On (maximum) @ Id, Vgs: 850mOhm @ 4.8A, 10V
  • Gate Source Voltage(th) (maximum) @ Id: 4V @ 250μA
  • Gate Charge (Qg) (maximum) @ Vgs: 67nC @ 10V
  • Gate Source Voltage (maximum): ±20V
  • Input Capacitance (Ciss) (maximum) @ Vds: 1300pF @ 25V
