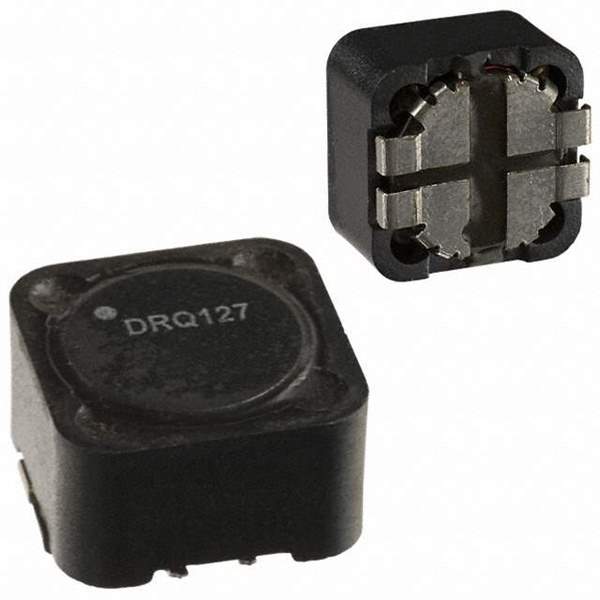

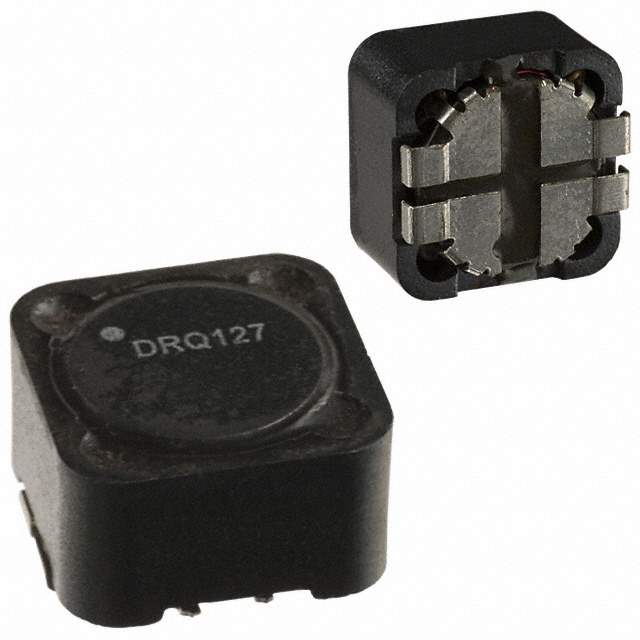

DRQ127-821-R Real Image
Same model may have multiple batches, images only for reference.

DRQ127-821-R

Part No DRQ127-821-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 818.1UH SMD / Shielded 2 Coil Inductor Array 3.272 mH Inductance - Connected in Series 818.1 µH Inductance - Connected in Parallel 1.47Ohm DC Resistance (DCR) - Parallel 650 mA Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Eaton - Electronics Division
Series DRQ
Package Tape & Reel
Number of Coils 2
Inductance - Connected In Parallel 818.1 µH
Inductance - Connected In Series 3.272 mH
Tolerance ±20%
Current Rating - Parallel 650 mA
Current Rating - Series 325 mA
Current Saturation - Parallel 1.27 A
Current Saturation - Series 633 mA
DC Resistance (DCR) - Parallel 1.47Ohm
DC Resistance (DCR) - Series 5.88Ohm
Shielding Shielded
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height 0.315" (8.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names DRQ127-821,DRQ127-821-R-ND,DRQ127-821R,513-1320-6,DRQ127-821-ND,513-1320-2,DRQ127821R,513-1320-1
Standard Package 350
Win Source Part Number 1174697-DRQ127-821-R
Ultra Librarian 3D Model Ultra Librarian DRQ127-821-R CAD Model

Description

The DRQ127-821-R is a shielded inductor array that comes in Tape & Reel package.

  • Standard Package: 350 units
  • Mounting: Surface Mount Device (SMD)
  • Height: 0.315" (8.00mm)
  • Coils: 2
  • Inductance (Series): 3.272 mH
  • Inductance (Parallel): 818.1 µH
  • Current Rating (Series): 325 mA
  • Current Rating (Parallel): 650 mA
  • DC Resistance (DCR) (Series): 5.88 Ohm
  • DC Resistance (DCR) (Parallel): 1.47 Ohm
  • Temperature Range: -40°C to 125°C
  • Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
  • Manufacturer: Eaton - Electronics Division
