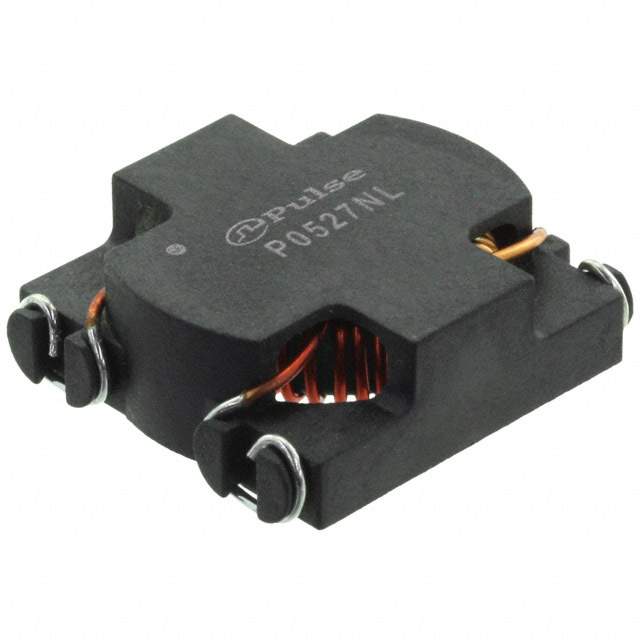

P0527NLT Real Image
Same model may have multiple batches, images only for reference.

P0527NLT

Part No P0527NLT
Manufacturer Pulse
Catalog Common Mode Chokes
Description COMMON MODE CHOKE 7.2A 2LN SMD
Datasheet
P0527NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Filter Type Power Line
Number of Lines 2
Current Rating (Max) 7.2A
DC Resistance (DCR) (Max) 15 mOhm
Temperature Range - Operating -40°C to 120°C
Mounting SMD (SMT)
Height (Max) 0.395" (10.04mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 124280-P0527NLT
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian P0527NLT CAD Model

Description

The P0527NLT is a power line filter from Pulse Electronics Corporation.

  • Dimension: 4 PC pad, horizontal dimension
  • Mounting: Surface-mounted
  • Maximum DC Resistance: 15 mOhm
  • Maximum Current Rating: 7.2A
  • Temperature Range: -40°C to 120°C
