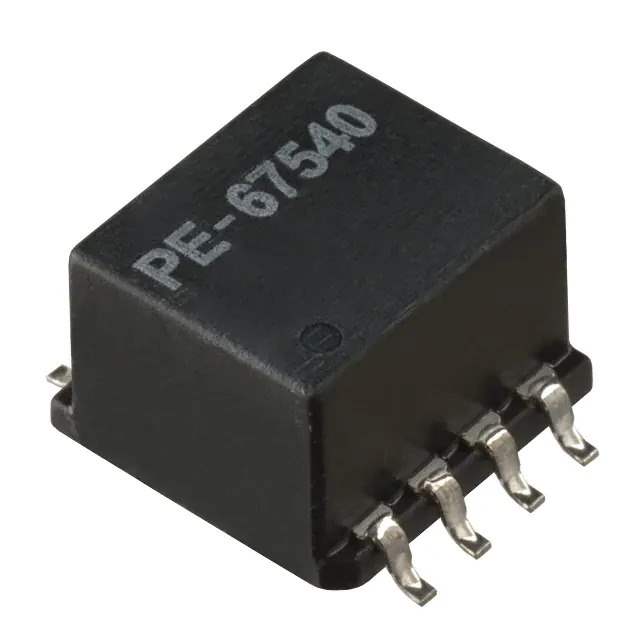

PE-67540 Real Image
Same model may have multiple batches, images only for reference.

PE-67540

Part No PE-67540
Manufacturer Pulse
Catalog Common Mode Chokes
Description CMC 4LN SMD
Datasheet
PE-67540 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Pulse
Package Bulk
Product Status Obsolete
Filter Type Signal Line
Number of Lines 4
DC Resistance (DCR) (Max) 600mOhm
Mounting Type Surface Mount
Size / Dimension 0.476" L x 0.602" W (12.10mm x 15.30mm)
Height (Max) 0.350" (8.89mm)
Package / Case Vertical, 8 Gull Wing
Standard Package 40 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 654191-PE-67540
Ultra Librarian 3D Model Ultra Librarian PE-67540 CAD Model

Description

The 654191-PE-67540 is a common mode choke designed for signal line filtering applications.

  • Package: Bulk
  • Size: 0.476" L x 0.602" W (12.10mm x 15.30mm)
  • Height: 0.350" (8.89mm)
  • Package/Case: Vertical, 8 Gull Wing
  • DC Resistance (DCR): 600mOhm
  • Mounting Type: Surface Mount
  • Compliance: REACH
  • Status: Obsolete
