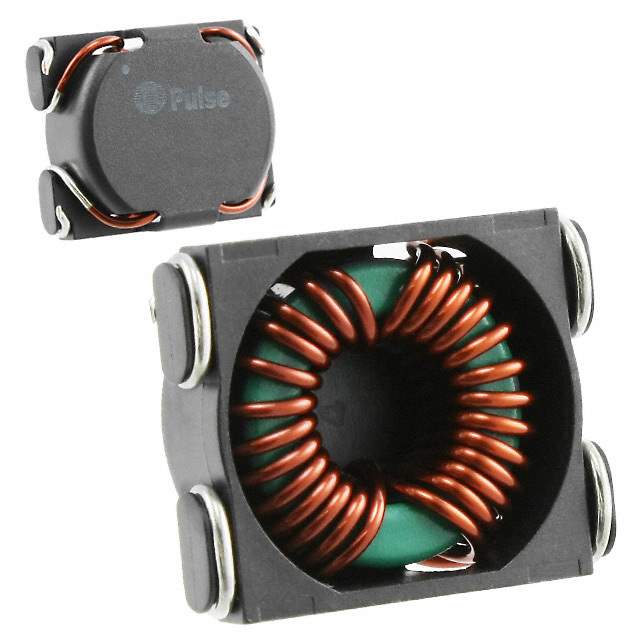

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Filters
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Filter Type Power Line
Number of Lines 2
Current Rating (Max) 14A
DC Resistance (DCR) (Max) 8 mOhm
Temperature Range - Operating -40°C to 120°C
Mounting SMD (SMT)
Height (Max) 0.500" (12.70mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 026214-P0502NLT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian P0502NLT CAD Model

Description

The Pulse Electronics Corporation 026214-P0502NLT is a power line filter that is commonly used in electronic devices.

  • Current Rating: 14A
  • Maximum DC Resistance: 8 mOhm
  • Height: 0.500" (12.70mm)
  • Mounting: SMD (SMT)
  • Temperature Range: -40°C to 120°C
