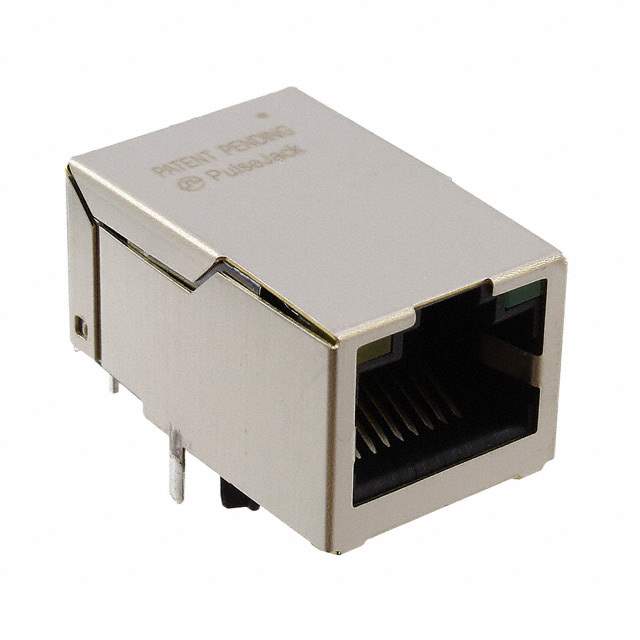

J1012F01CNL Real Image
Same model may have multiple batches, images only for reference.

J1012F01CNL

Part No J1012F01CNL
Manufacturer Pulse
Catalog Modular Connectors
Description integrated magnetics connector | CONN MAGJACK 1PORT 100 BASE-TX
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Pulse Electronics Network
Packaging Tray
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-TX, AutoMDIX
Mounting Style Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.550" (13.97mm)
LED Color Yellow - Green
Number of Cores per Jack 4
Shielding Shielded
Features Board Guide
Tab Direction Up
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 15.0μin (0.38μm)
Shield Material Brass
Dielectric Material Thermoplastic
Manufacturer Pack Quantity 30
MSL Level 1 (Unlimited)
Win Source Part Number 1191320-J1012F01CNL
Manufacturer Homepage www.pulseeng.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian J1012F01CNL CAD Model

Description

The J1012F01CNL connector from Pulse Electronics Network is a shielded RJ45 connector that has a yellow-green LED color.

  • Applications: 10/100 Base-TX and AutoMDIX
  • Mounting: Through Hole
  • Board Guide: Yes
  • Tab Direction: Up
  • Orientation: 90° Angle (Right)
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 30
