Same model may have multiple batches, images only for reference.

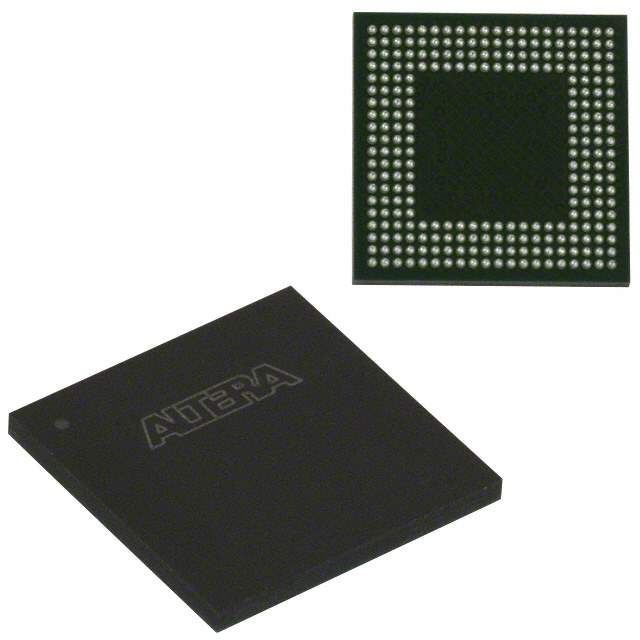

EPF6016BC256-3 Real Image
Same model may have multiple batches, images only for reference.

EPF6016BC256-3

Part No EPF6016BC256-3
Manufacturer Altera
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 204 I/O 256BGA / FPGA FLEX 6000 Family 16K Gates 1320 Cells 125MHz 0.42um Technology 5V 256-Pin BGA
Datasheet
EPF6016BC256-3 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Altera
Series FLEX 6000
Part Status Obsolete(EOL)
Number of LABs/CLBs 132
Number of Logic Elements/Cells 1320
Number of I/O 204
Number of Gates 16000
Operating Supply Voltage 4.75 V ~ 5.25 V
Mounting SMD
Operating Temperature Range 0°C ~ 85°C (TJ)
Package 256-LBGA
Manufacturer Package 256-BGA (27x27)
Win Source Part Number 774087-EPF6016BC256-3
Popularity Medium
Supply and Demand Status Limited
Family Name EPF6016
Introduction Date November 08, 1996
ECCN 3A991
Country of Origin Republic of Korea
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian EPF6016BC256-3 CAD Model

Description

The Altera EPF6016BC256-3 is a member of the FLEX 6000 series of integrated circuits (ICs).

  • Operating Temperature: 0°C to 85°C
  • Package: 256-LBGA
  • Mounting Method: SMD
  • Operating Supply Voltage: 4.75 V to 5.25 V
  • I/Os: 204
  • LABs/CLBs: 132
  • Logic Elements/Cells: 1320
  • RAM: 0 bits
  • Gates: 16000
  • Family Name: EPF6016
  • Category: Integrated Circuit
  • Manufacturer Package: 256-BGA (27x27)
  • Status: Obsolete/End of Life
  • Popularity: Medium
